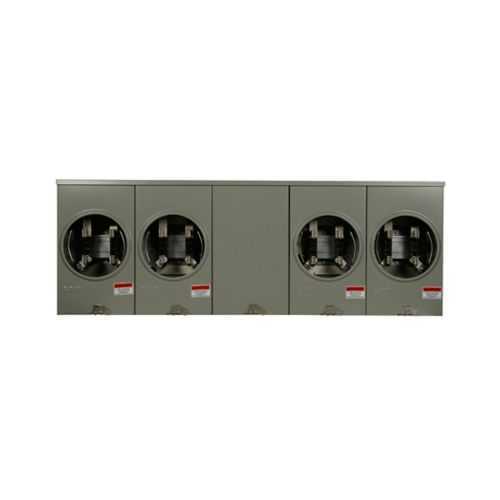

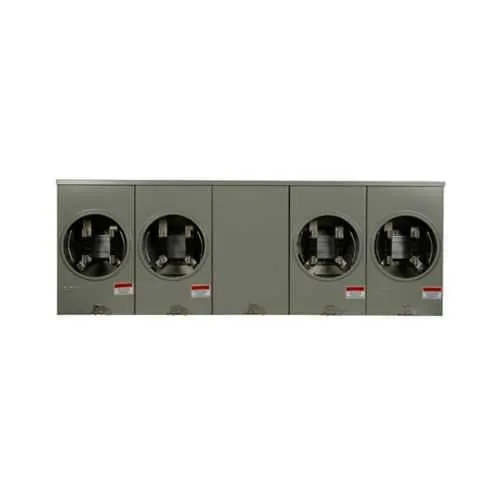

Eaton UT4R1121BCH Meter Socket - UL Listed 600V
Part Number: UT4R1121BCH
Quick Summary
The Eaton UT4R1121BCH meter socket provides reliable service connections for commercial or residential utility installations. Engineers often face tight spaces and compatibility concerns in legacy panels; this four-jaw, ringless design simplifies retrofits. Key certifications include UL Listed and regional utility approvals from CMP, Emera Maine, SCE&G, and Entergy, supporting broad market deployment. In practice, this translates to faster installations, consistent electrical contact quality, and fewer field reworks, boosting project efficiency. This is particularly valuable for utilities and EPCs seeking standardized, code-compliant meter equipment. The unit's 3-5/16 in hub opening and 600V rating support flexible siting across varied service configurations. This combination helps ensure fast compliance reviews and a smoother procurement process.
Product Information
Extended Description
UT4R1121BCH Eaton: Eaton meter socket, Multi position commercial or resi service, 100A, Over/under, 3-5/16 inch hub open, #6-250 kcmil, Four-jaw, 1-ph, #8-2/0 AWG, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UT4R1121BCH
UPC
782116094639
Product Length/Depth
4.5 in
Product Height
14.13 in
Product Width
40.63 in
Product Weight
40 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Multiple position commercial or residential service
Amperage Rating
100A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power ME : Emera Maine (Bangor Hydro Electric Co./ Maine Public Service Company) SC : South Carolina Electric and Gas (SCE&G) AR : Entergy LA : Entergy MS : Entergy TX : Entergy
Line
#6-250 kcmil
Load
#8-2/0 AWG
Number of wires
Three-wire
Hub type
3-5/16 in hub opening
Security
Ringless
Voltage rating
600 V
Number of sockets
4
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UT4R1121BCH
Selling Policy 25-000 - Distribution and Control Products and Services
Feature → Business Impact → Application: The UT4R1121BCH supports multiple-position commercial or residential service with a 100A rating, enabling a single meter socket to cover diverse installations. This flexibility reduces parts variety, simplifies procurement, and speeds jobsite readiness while preserving code compliance. Ideal for new developments or retrofits where meter position and service configuration vary between sites. Feature → Business Impact → Application: Four-jaw, ringless construction with a 3-5/16 in hub opening delivers robust conductor capture and streamlined field installations. Business Impact: Reduces termination errors, improves safety margins, and minimizes rework in tight spaces. Application: Fits top/bottom fed setups in dense electrical rooms or meter bases, simplifying retrofits in existing buildings. Feature → Business Impact → Application: Line and load capacities with Line #6-250 kcmil and Load #8-2/0 AWG for a three-wire configuration. Business Impact: Supports large feeders and flexible conductor routing, lowering material waste and field change orders. Application: Suitable for 100A service feeds in light commercial and multi-residential meters. Feature → Business Impact → Application: 600 VAC rating and UL Listed certification deliver critical safety and compliance signals. Business Impact: Meets regulatory expectations, reduces risk of field failures, and supports warranty validity. Application: Appropriate for municipal and utility-approved deployments across CMP, Emera Maine, SCE&G and Entergy markets. Feature → Business Impact → Application: Top/bottom feed compatibility and ringless ground connection enhance installation flexibility. Business Impact: Improves reliability and reduces install time in busy meter rooms. Application: Ideal for retrofits or new builds requiring adaptable feeder options and compliant grounding. Feature → Business Impact → Application: Eaton warranty and comprehensive documentation support long-term maintenance and lifecycle value. Business Impact: Lowers total cost of ownership through predictable service and straightforward replacements. Application: Suitable for facility managers and EPCs focusing on proactive reliability and easy sourcing.
Get a Quick Quote for a Eaton UT4R1121BCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT4R1121BCH?
Enquire Now
FAQs
The UT4R1121BCH is a multiple-position meter socket designed for commercial or residential service up to 100A and 600V. It supports top or bottom feed with four jaws in a ringless configuration, enabling flexible metering in new constructions or retrofits where meter location and service configuration vary. This reduces parts variety and accelerates procurement while maintaining code compliance.
Yes. The device is UL Listed and carries regional utility approvals, including CMP (Central Maine Power) and Emera Maine, plus SCE&G and Entergy markets. These approvals facilitate smoother utility acceptance and commissioning across multiple jurisdictions, reducing site delays and ensuring compliance with utility standards.
The meter socket accepts Line conductors from #6 to 250 kcmil and Load conductors from #8 to 2/0 AWG, in a three-wire configuration. This range supports large feeders and flexible wiring layouts, allowing for robust current paths in both residential and light commercial applications.
Key dimensions include a hub opening of 3-5/16 in, width of 40.63 in, height of 14.13 in, and depth of 4.5 in. The four-jaw design and ringless mounting simplify installation in crowded canopies or meter enclosures, while top/bottom feed configurations support varied mounting orientations.
Eaton provides a standard warranty under Selling Policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first. Comprehensive technical documentation and support are available to assist with specifications, installation, and warranty claims, reducing lifecycle risk and ensuring long-term reliability.
