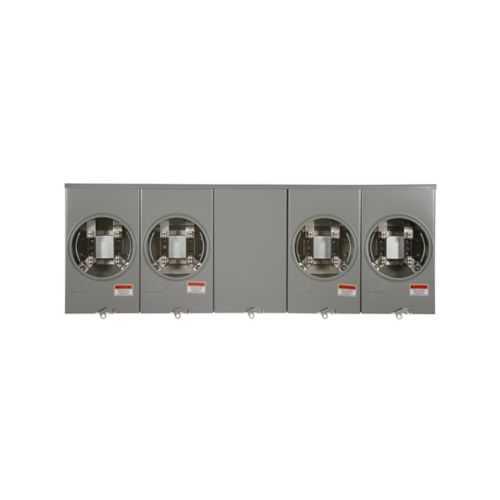

Eaton UT4R2352TCH Meter Socket - UL Listed, 600 V
Part Number: UT4R2352TCH
Quick Summary
Eaton UT4R2352TCH meter socket provides reliable service connections for commercial and residential electrical systems. Engineers often struggle with top/bottom feed configurations and limited metering access in tight spaces. UL Listed certification ensures reliability, while utility approvals from ME, GA, NM, TNMP and SC support compliant field installs. This solution also delivers business value by enabling faster metering entry and consistent performance in both new construction and retrofit projects, aligning with metering products used by installers, contractors, and procurement teams.
Product Information
Extended Description
UT4R2352TCH Eaton: Eaton meter socket, Multi position commercial or resi service, 200A, Over/under, 5x5 inch hub open, #1/0-500 kcmil, 4-jaw, 1-ph, #8-250 kcmil, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UT4R2352TCH
UPC
782116016693
Product Length/Depth
5.38 in
Product Height
14.13 in
Product Width
40.63 in
Product Weight
40 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Multiple position commercial or residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power GA : Georgia Power NM : Texas-New Mexico Power (TNMP) TX : Texas-New Mexico Power (TNMP) SC : South Carolina Electric and Gas (SCE&G) TX : Entergy
Line
#1/0-500 kcmil
Load
#8-250 kcmil
Number of wires
Three-wire
Hub type
5 x 5 hub opening
Security
Ringless
Voltage rating
600 V
Number of sockets
4
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UT4R2352TCH
Feature: 200A, 600 V rating ensures capability for high-load services; Business Impact: supports safe, compliant, and scalable feeder connections; Application: ideal for commercial or residential service upgrades and new builds. Feature: Four-jaw, ringless design enhances wiring security and reduces tampering risk; Business Impact: improves installation accuracy and long-term reliability; Application: suitable for four-wire meter configurations with #1/0-500 kcmil lines and #8-250 kcmil loads. Feature: Top/bottom feed with 5x5 hub opening provides flexible entry points; Business Impact: simplifies installation in tight or cluttered electrical rooms; Application: retrofit or new-build meter installations requiring versatile entry. Feature: UL Listed with broad utility approvals; Business Impact: streamlines code compliance and reduces field revision cycles; Application: preferred for regulated commercial and residential metering projects. Feature: Ringless, 3-wire configuration and 4 sockets minimize space and installation steps; Business Impact: lowers labor costs and accelerates project timelines; Application: modernization projects in multifamily and light commercial settings. Feature: Comprehensive warranty terms reduce lifecycle risk; Business Impact: protects procurement budgets and supports service planning; Application: procurement for ongoing maintenance and upgrades.
Get a Quick Quote for a Eaton UT4R2352TCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT4R2352TCH?
Enquire Now
FAQs
When planning installation, verify space for a 14.13 in height, 40.63 in width enclosure and a 5.38 in depth. Ensure top/bottom feed, three‑wire configuration, and a four‑jaw design are compatible with the service entrance. The meter socket's ringless body reduces tamper points, while the 5x5 hub opening accommodates a broad range of conductors up to #1/0-500 kcmil on the line and #8-250 kcmil on the load.
Yes. UT4R2352TCH is specified for top/bottom feed and supports a three-wire, four-socket configuration. This makes it suitable for both commercial and residential services, enabling flexible installation in spaces with limited access while maintaining code-compliant conductor routing and solid grounding connections.
Key specs include a 200A amperage rating, 600V voltage rating, four-jaw design, single-phase configuration, and a 5x5 hub opening with a ringless construction. It is UL Listed, and meets multiple utility approvals, including ME, GA, NM, TNMP and SC, supporting compliant field installs in diverse regions.
The UT4R2352TCH meets utility approvals from Maine (ME), Georgia (GA), New Mexico (NM), Texas-New Mexico Power (TNMP), South Carolina (SC), and Entergy. This broad compatibility reduces project risk by aligning with local utility requirements for metering equipment and service entrances.
Eaton provides a warranty under policy 25-000: one year from installation or eighteen months from shipment, whichever comes first. For maintenance, schedule periodic inspections of terminations and insulation integrity, and keep replacement parts stocked for the four-jaw assembly. This supports predictable total cost of ownership and minimizes downtime during service upgrades.
