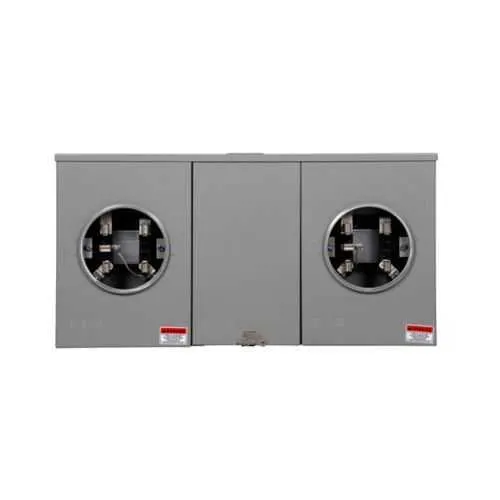

Eaton UT5H72393UUHLCH Meter Socket - UL Listed
Part Number: UT5H72393UUHLCH
Quick Summary
Eaton meter socket is a robust service connection point for commercial or residential electrical feeds. Engineers often struggle with bulky installations, complex wiring, and limited bypass options that slow startup and maintenance. UL Listed safety certification and utility approvals (IA: Alliant IP&L and WP&L; WI: Alliant IP&L and WP&L; MI: Consumers Energy) help ensure project-wide compliance. Built for metering products in both commercial and residential settings, it supports efficient installation, simplified maintenance, and scalable power distribution. Trust Eaton for metering product solutions that align with industrial terminology and project timelines.
Product Information
Extended Description
UT5H72393UUHLCH Eaton: Eaton meter socket, Multi position commercial or resi service, 200A, Over/under, (2) Large hub cover plates, (2) #1/0-500 kcmil, 7-jaw, 3-phase, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 4-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UT5H72393UUHLCH
UPC
782116342563
Product Length/Depth
6 in
Product Height
23.56 in
Product Width
72.15 in
Product Weight
140 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Multiple position commercial or residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Seven-jaw
Phase
Three-phase
Utility approvals
IA : Alliant (IP&L and WP&L) WI : Alliant (IP&L and WP&L) MI : Consumers Energy
Line
(2) #1/0-500 kcmil
Load
#6-350 kcmil
Number of wires
Four-wire
Hub type
(2) 5 x 5 hub cover plate
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
5
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UT5H72393UUHLCH
Feature: The UT5H72393UUHLCH supports 200A, 600V three‑phase four‑wire service with top/bottom feed. This rating accommodates large building loads with safer, stable power distribution, reducing voltage drop and improving overall reliability. Ideal for commercial metering and high‑demand residential projects, it supports scalable power delivery for multiple tenants and facilities. Feature: Flexible termination options with line (2) #1/0-500 kcmil and load #6-350 kcmil supported by a seven‑jaw design. This arrangement reduces field splices and simplifies conductor management, saving field labor and installation time. Ideal for retrofit and new-build projects in commercial metering and large‑residential installations that require robust capacity. Feature: Ringless design and two 5x5 hub cover plates enhance safety and serviceability. The ringless construction minimizes access gaps and tampering risk, while the hub plates simplify high‑volume terminations in commercial metering. This combination yields faster, error‑free installations and easier inspections, especially in retrofit projects where existing conduits and spaces are tight. Feature: Lever bypass for fast service reconfiguration. This feature minimizes downtime during meter swaps or load shifts, enabling rapid restoration of critical circuits. It complements three‑phase four‑wire configurations and triplex feed layouts, making on-site maintenance predictable and cost‑effective in multi‑tenant facilities. Feature: UL Listed certification, 600V rating, and documented utility approvals (IA Alliant IP&L/WP&L; WI Alliant IP&L/WP&L; MI Consumers Energy) ensure regulatory compliance and procurement confidence. The included warranty (Eaton Selling Policy 25-000) offers one year from installation or 18 months from shipment, reducing ownership risk. Compatibility with both residential and commercial metering standards supports streamlined procurement and project timelines.
Get a Quick Quote for a Eaton UT5H72393UUHLCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT5H72393UUHLCH?
Enquire Now
FAQs
Plan for top/bottom feed with a 3‑phase, 4‑wire configuration and ensure conductor sizes match line (2) #1/0-500 kcmil and load #6-350 kcmil. Use the (2) 5x5 hub cover plates for secure terminations, verify seven‑jaw alignment, and connect grounding (#14-#2 Cu). Follow UL Listed safety guidelines and local utility requirements for a compliant, service-ready installation.
Line conductors accommodate (2) #1/0-500 kcmil and load conductors run from #6-350 kcmil. The unit uses a seven‑jaw, four‑wire arrangement for three‑phase service rated at 200A and 600V. This range supports large feeders while preserving termination integrity and ease of field wiring.
Yes, the UT5H72393UUHLCH is UL Listed for electrical safety. It also carries utility approvals and is compatible with IA Alliant (IP&L and WP&L), WI Alliant (IP&L and WP&L), and MI Consumers Energy programs, helping streamline permitting and utility acceptance for commercial and multifamily projects.
Key specs include 200A amperage rating, 600V voltage rating, three‑phase four‑wire configuration, top/bottom feed, seven‑jaw termination, ringless design, and lever bypass. It supports two large hub plates and conductor ranges for flexible installations, making it suitable for heavy-duty metering in commercial and multi-tenant residential environments.
Warranty terms follow Eaton policy 25-000: coverage for one year from installation or eighteen months from shipment, whichever occurs first. This provides protection against manufacturing defects and supports long-term ownership while aligning with typical construction project timelines and maintenance planning.
