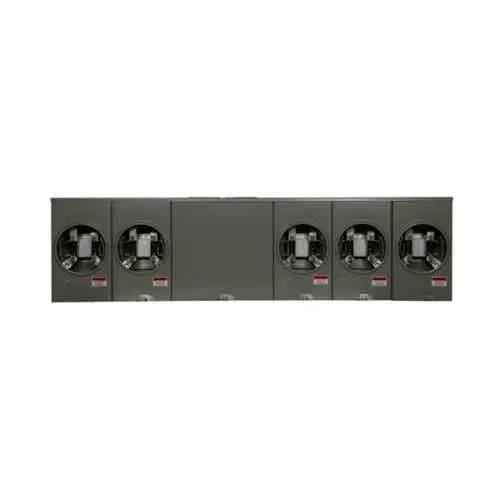

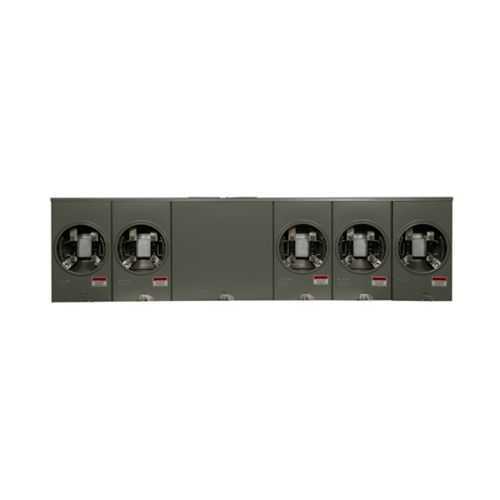

Eaton UT5R2392TTCH Meter Socket - UL Listed, 600V
Part Number: UT5R2392TTCH
Quick Summary
The Eaton meter socket UT5R2392TTCH provides reliable service connections for commercial or residential metering installations. Installing versatile, code-compliant sockets across varying utility requirements and installation spaces can be challenging. UL Listed certification ensures safety and compliance, with utility approvals from Emera Maine, Georgia Power, PNM/TNMP, SCE&G, and Central Maine Power supporting regional codes. This product offers flexible top or bottom feed and robust 200 A capacity, delivering long-term value for projects and maintenance teams. Using this meter socket helps ensure reliability, faster installation, and regulatory alignment in commercial and residential metering applications.
Product Information
Extended Description
UT5R2392TTCH Eaton: Eaton meter socket, Multi position commercial or resi service, 200A, Over/under, (2) 5x5 inch hub open, (2) #1/0-500 kcmil, 4-jaw, 1-phase, #8-250 kcmil, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UT5R2392TTCH
UPC
782116104642
Product Length/Depth
5.38 in
Product Height
14.13 in
Product Width
54.78 in
Product Weight
63.25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Multiple position commercial or residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
ME : Emera Maine (Bangor Hydro Electric Co./ Maine Public Service Company) GA : Georgia Power NM : Public Service Company of New Mexico (PNM) NM : Texas-New Mexico Power (TNMP) TX : Texas-New Mexico Power (TNMP) SC : South Carolina Electric and Gas (SCE&G) ME : Central Maine Power TX : Entergy
Line
(2) #1/0-500 kcmil
Load
#8-250 kcmil
Number of wires
Three-wire
Hub type
5 x 5 hub opening (in two places)
Security
Ringless
Voltage rating
600 V
Number of sockets
5
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UT5R2392TTCH
The UT5R2392TTCH delivers 200 A, single-phase, three-wire service with a four-jaw clamp and a 600 V rating, providing robust capacity for mid-size commercial or residential metering. This configuration improves connection stability and electrical safety for feeders and service drops, while simplifying field installations. Top or bottom feed capability offers installation flexibility in tight spaces, reducing retrofits and accelerating project timelines for new builds and renovations. The conductor range supports (2) #1/0-500 kcmil on the line side and #8-250 kcmil on the load side, with ringless grounding via #14-#2 Cu and a secure four-jaw termination for high-amperage feeders. Two 5x5 hub openings enable adaptable conduit routing, enhancing installation efficiency. UL Listed and utility approvals underpin code compliance, reducing project risk and speeding inspections.
Get a Quick Quote for a Eaton UT5R2392TTCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT5R2392TTCH?
Enquire Now
FAQs
The UT5R2392TTCH supports top or bottom feed configurations in a single-phase, three‑wire system. With two 5x5 hub openings and a four-jaw clamp, it accommodates diverse line and load routing needs while ensuring secure terminations. This flexibility makes it suitable for both new installations and retrofit projects in commercial or residential metering.
For line conductors, the socket accommodates (2) #1/0-500 kcmil, providing substantial current capability. For load conductors, it accepts #8-250 kcmil, delivering versatility for a range of feeder configurations. Grounding is supported by #14-#2 Cu, and the four-jaw design ensures a firm, reliable connection for high-amperage applications.
Yes. The UT5R2392TTCH is designed as a multi-position commercial or residential service meter socket with a 200 A rating and 600 V isolation capability. Its top/bottom feed and four-jaw construction support diverse metering needs, while UL Listed certification and regional utility approvals help ensure code compliance across commercial and residential installations.
The UT5R2392TTCH carries UL Listed certification. It also aligns with utility approvals from multiple regional utilities, including Emera Maine, Georgia Power, PNM/TNMP, SCE&G, and Central Maine Power, ensuring compatibility with local codes and utility requirements for metering equipment.
Eaton backs the UT5R2392TTCH with a standard warranty under policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. This warranty supports lifecycle costs, provides coverage during commissioning, and is complemented by Eaton’s technical support for installation questions and field performance inquiries.
