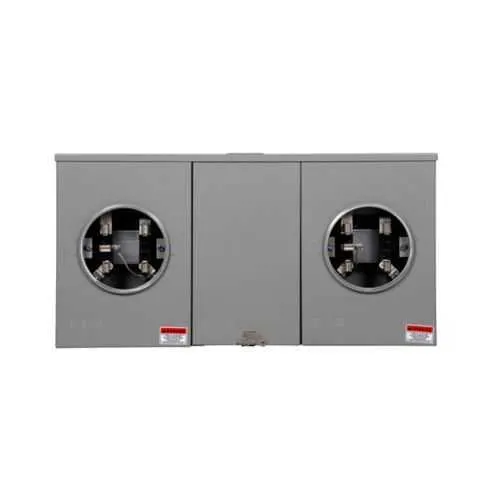

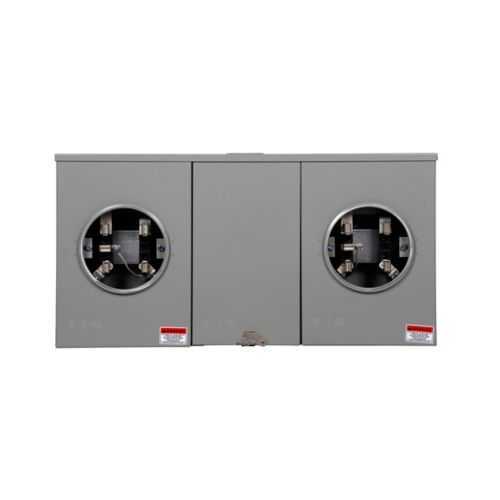

Eaton UT6R2392TTCH Meter Socket - UL Listed
Part Number: UT6R2392TTCH
Quick Summary
Eaton meter socket UT6R2392TTCH provides a reliable meter interface for commercial or residential service. Engineers often struggle with compatibility, installation time, and future-proofing metering hardware in tight project timelines. This unit carries UL Listed safety certification and supports a broad 600 V distribution footprint, aligning with standard metering practices. With top or bottom feed and a four-jaw design, it simplifies field wiring while improving safety margins. By matching utility approvals and common metering configurations, it reduces project risk and accelerates commissioning. Its 5x5 hub openings, ringless security, and 200 A rating make it a versatile choice for modern power management and distribution needs.
Product Information
Extended Description
UT6R2392TTCH Eaton: Eaton meter socket, Multi position commercial or resi service, 200A, Over/under, (2) 5x5 inch hub open, (2) #1/0-500 kcmil, 4-jaw, 1-ph, #8-250 kcmil, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UT6R2392TTCH
UPC
782116104659
Product Length/Depth
5.38 in
Product Height
14.13 in
Product Width
62.94 in
Product Weight
60 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Multiple position commercial or residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power ME : Emera Maine (Bangor Hydro Electric Co./ Maine Public Service Company) GA : Georgia Power NM : Public Service Company of New Mexico (PNM) NM : Texas-New Mexico Power (TNMP) TX : Texas-New Mexico Power (TNMP) SC : South Carolina Electric and Gas (SCE&G) TX : Entergy
Line
(2) #1/0-500 kcmil
Load
#8-250 kcmil
Number of wires
Three-wire
Hub type
5 x 5 hub opening (in two places)
Security
Ringless
Voltage rating
600 V
Number of sockets
6
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UT6R2392TTCH
Feature → Business Impact → Application: The UT6R2392TTCH is a 200A, 600V, single-phase three-wire meter socket with a four-jaw design, top/bottom feed, and ringless construction. This combination improves installation speed, reduces wiring errors, and enhances safety during metering installation in both commercial and residential settings. In practice, electrical teams experience fewer field modifications and quicker pull routes when wiring feeders, which translates to lower labor costs and faster project timelines. Application-wise, the unit supports large residential buildings and light commercial projects where reliable metering is critical and utility approvals matter. Also, the UL Listed certification provides a credible safety baseline, helping meet stringent commissioning requirements and reducing inspection cycles. The device’s 5x5 hub openings match common conductors, enabling flexible, future-ready configurations and simplified field maintenance. The 200A rating supports sizable load profiles while maintaining robust fault tolerance in malleable power distribution schemes.
Get a Quick Quote for a Eaton UT6R2392TTCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT6R2392TTCH?
Enquire Now
FAQs
The UT6R2392TTCH is designed for top or bottom feed with a four-jaw configuration and 5x5 hub openings, allowing flexible compatibility with common residential and commercial feeders. Its ringless design reduces tampering risk, while the 200A rating supports standard utility service connections. When replacing older bases, verify conductor sizes (Line: #1/0–500 kcmil; Load: #8–250 kcmil) and ensure the mounting footprint matches your enclosure layout for a seamless retrofit.
Primary specifications include a 200A amperage rating, 600V voltage rating, single-phase, and three-wire configuration. The unit uses a four-jaw closure and provides secure ringless sockets for reliable retirement or new installation. Compliance with UL Listed safety standards helps meet typical utility and code requirements, while the top/bottom feed option supports diverse installation scenarios in commercial and residential metering.
This meter socket excels in commercial or residential service installations requiring a robust, multi-position interface. It suits multifamily buildings, light commercial facilities, and retrofits where space constraints and wiring flexibility are key. Its dual-feed capability and 200A capacity support diverse metering setups, while UL Listed certification provides confidence for new builds and retrofit projects alike.
The UT6R2392TTCH carries UL Listed certification, indicating compliance with established safety standards for electrical equipment. It also aligns with typical utility and building code expectations for metering installations, including compatibility with 600V systems and standard conductor ranges. While additional regional approvals may vary, UL Listed status is a solid baseline for risk reduction and inspection readiness.
By enabling faster wiring with top/bottom feed and ringless sockets, the UT6R2392TTCH can reduce labor time during installation and commissioning. Its durable construction supports long service life under standard metering loads, while UL Listed certification provides assurance of safety and reliability. The unit’s compatibility with common conductors and utility requirements helps minimize retrofit or replacement frequency, delivering lower lifetime maintenance costs.
