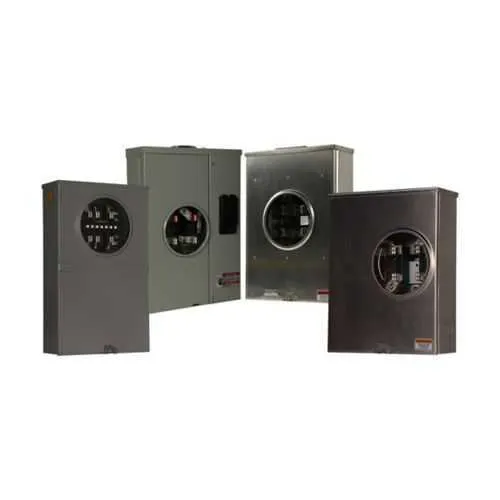

Eaton UTDN7212ZCH Meter Socket - UL Listed
Part Number: UTDN7212ZCH
Quick Summary
Eaton meter socket is a robust 200A three-phase meter connection for commercial and industrial metering. Engineers often confront space constraints, wiring reliability concerns, and the challenge of maintaining code compliance during service upgrades. UL Listed certification ensures safety and code conformity, while the ring-type security and seven-jaw design improve field termination and tamper resistance. Designed to integrate with Eaton distribution equipment, it delivers faster installs, predictable maintenance, and reliable performance in 600 V systems. With a compact 19 in depth and a weight of 21 lb, it simplifies enclosure planning, installation logistics, and inventory management for project teams.
Product Information
Extended Description
UTDN7212ZCH Eaton: Eaton meter socket, 200A, Seven-jaw, Three-phase, Non-lever bypass, Ring, 600V
Product Name
Eaton meter socket
Catalog Number
UTDN7212ZCH
UPC
782116323159
Product Length/Depth
19 in
Product Height
6 in
Product Width
13 in
Product Weight
21 lb
Certifications
UL Listed
Amperage Rating
200A
Number of jaws
Seven-jaw
Phase
Three-phase
Security
Ring
Voltage rating
600 V
Bypass
Non-lever
Eaton Specification Sheet - UTDN7212ZCH
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 200A amperage rating provides capacity for typical commercial and light industrial service points, reducing feeder complexity and enabling predictable load management. Business Impact: minimizes upstream switching requirements and supports consistent metering performance in demanding environments. Application: ideal for service entrances in commercial buildings and small to mid-size industrial facilities. Feature: Seven-jaw, ring-type security delivers tamper resistance and secure conductors, improving protection against unauthorized access and reducing maintenance calls. Business Impact: enhanced safety and reliability with faster fault isolation. Application: main meter sockets in outdoor or underground installations where security matters. Feature: 600 V voltage rating ensures compatibility with common utility service voltages and equipment in mixed-volt environments. Business Impact: broadens installation options and lowers integration risk. Application: three-phase metering for varied industrial feeds. Feature: Non-lever bypass simplifies operation and reduces moving parts, contributing to longer service life and simpler field servicing. Business Impact: lowers maintenance overhead and stock requirements for replacement parts. Application: routine service upgrades and AMI/AMI-ready installations. Feature: UL Listed certification supports compliance with electrical codes and contractor requirements, easing inspection processes and project handoffs. Business Impact: accelerates project approvals and reduces rework. Application: installations demanding recognized safety certification. Feature: Compact 19 in depth, 13 in width, 6 in height, and 21 lb weight facilitate transport, enclosure fit, and handling. Business Impact: reduces installation time and inventory footprint. Application: retrofit projects and new builds with standard 19 in racking and enclosure spaces.
Get a Quick Quote for a Eaton UTDN7212ZCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTDN7212ZCH?
Enquire Now
FAQs
Yes. The UTDN7212ZCH is a 200A, three-phase meter socket designed for common service entrance configurations. Its seven-jaw ring design supports secure termination, while the 600 V rating aligns with typical industrial and commercial service feeders. Ensure enclosure space accommodates the 19 in depth and 13 in width for a clean installation.
Key specs include 200A amperage rating, seven-jaw ring-type security, three-phase configuration, 600 V voltage rating, non-lever bypass, and UL Listed certification. Physical size is 19 in length, 13 in width, and 6 in height with a 21 lb weight, enabling straightforward mounting in standard enclosures.
It is well-suited for commercial electrical rooms and light to mid-size industrial facilities requiring reliable three-phase metering. Use cases include service entrances, AMI/AMI-ready installations, and retrofit projects where secure termination and compliant metering are essential.
Yes. The unit is UL Listed, indicating compliance with safety and performance standards for electrical equipment used in metering and service connections, which simplifies inspections and project approvals for installers and building owners.
Plan for a 19 in deep enclosure with adequate clearance for wiring and ring-terminals. The non-lever bypass reduces moving parts, while the seven-jaw design improves termination integrity. Maintain proper torque on connections and follow Eaton’s datasheet and the UL listing requirements to ensure ongoing performance and safety.
