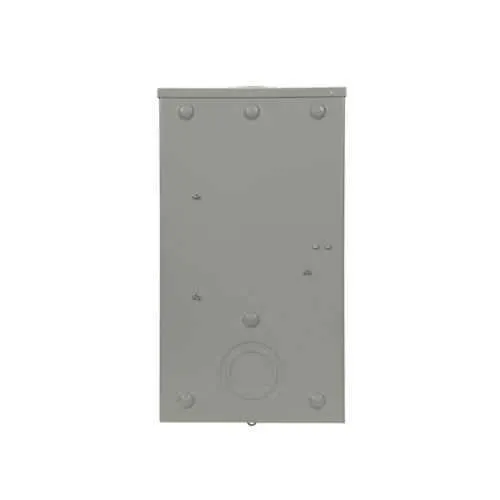

Eaton UTE4203BCH Meter Socket - UL Listed, 200A Overhead
Part Number: UTE4203BCH
Quick Summary
Eaton meter socket is a dependable metering interface for commercial facilities and overhead service connections. Engineers and procurement teams commonly battle installation delays and compatibility gaps when upgrading feeders. This unit addresses those challenges with a 200A rating, four-jaw ringless design, and a 3-5/16 inch hub opening for large conductors. UL Listed and supported by utility approvals, it is built to meet field requirements in busy electrical rooms and service entrances. The combination of straightforward installation, robust construction, and lever bypass for maintenance translates into lower labor costs and faster restoration times. Secondary benefits include reliable metering performance and simplified stocking with standard commercial metering configurations.
Product Information
Extended Description
UTE4203BCH Eaton: Eaton meter socket, Comm, 200A, Over, 3-5/16 inch hub open, #6-350 kcmil, 4-jaw, 1-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTE4203BCH
UPC
786685351070
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
10.5 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Commercial
Amperage Rating
200A
Feed type
Overhead
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power ME : Emera Maine (Bangor Hydro Electric Co./ Maine Public Service Company) NM : Public Service Company of New Mexico (PNM) WI : WE Energies / Wisconsin Public Service (WPS)
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
3-5/16 in hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTE4203BCH
Feature: 200A amperage rating and 600V maximum voltage. Business Impact: Supports high-demand commercial loads and protects equipment from overload while complying with standard service voltage requirements. Application: Overhead service entrances for office complexes and retail facilities. Feature: Four-jaw, ringless design. Business Impact: Secure, corrosion-resistant connections with simple assembly reduce installation time and field maintenance. Application: Tight meter enclosures where space and reliability matter. Feature: Lever bypass for quick maintenance. Business Impact: Minimizes downtime during service work and improves uptime metrics for critical facilities. Application: Routine meter maintenance without full disconnections. Feature: Hub opening 3-5/16 in and conductor range #6-350 kcmil. Business Impact: Supports large feeders and reduces the need for service rework when upgrading conductors. Application: Utility-ready installations with heavy feeders. Feature: 3-wire, single-phase configuration. Business Impact: Simplifies wiring schemes and reduces miswiring risk, accelerating commissioning. Application: Commercial metering in single-phase service contexts. Feature: UL Listed and utility approvals. Business Impact: Ensures code compliance and acceptance by gas/ electric utilities, easing project approvals. Application: New builds and retrofits across multiple jurisdictions. Feature: Compact dimensions and weight (19 in height, 4.94 in depth, 10.5 in width, 25 lb). Business Impact: Fitment in standard meter enclosures while minimizing footprint and handling effort. Application: Space-constrained electrical rooms and retrofit projects. Feature: One-year warranty from installation or 18 months from shipment. Business Impact: Reduces total cost of ownership and provides supplier-backed assurance. Application: Procurement and long-term maintenance planning.
Get a Quick Quote for a Eaton UTE4203BCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTE4203BCH?
Enquire Now
FAQs
The UTE4203BCH is designed for overhead feed with a 200A rating, 600V operation, and a four-jaw ringless design. It accepts conductors in the #6-350 kcmil range through a 3-5/16 in hub, supporting standard commercial metering layouts and simplifying installation in crowded meter rooms.
Key specs include 200A amperage rating, 600V voltage rating, single-phase operation, four-jaw sockets, 3-5/16 in hub opening, and ability to handle #6-350 kcmil conductors for both line and load. It is UL Listed and designed for overhead metering in commercial applications.
This meter socket is ideal for commercial facilities such as offices, retail spaces, and light industrial installations requiring overhead service connections. Its ringless design, by-pass lever, and large conductor compatibility support efficient service upgrades, metering points consolidation, and reliable power delivery in shared utility environments.
The unit is UL Listed, ensuring compliance with safety and performance standards. It also carries utility approvals for several regions, including Central Maine Power, Emera Maine, Public Service Company of New Mexico, and WE Energies, validating its acceptance for field deployment in multiple jurisdictions.
Eaton backs the UTE4203BCH with a warranty of one year from installation or eighteen months from shipment, whichever occurs first. Support and service options are available through Eaton’s channel partners, providing replacement or technical assistance to minimize downtime and extend equipment life.
