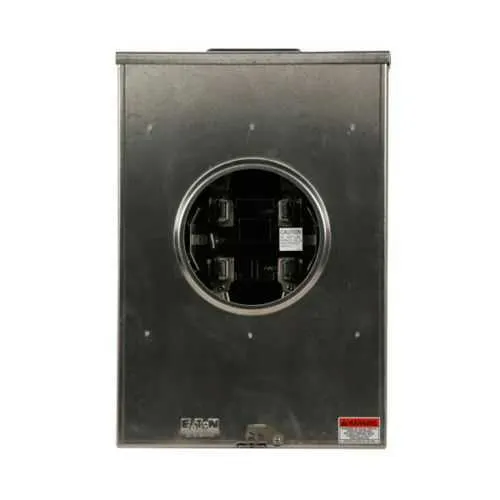

Eaton UTE4213TCH Meter Socket - UL Listed, 200A
Part Number: UTE4213TCH
Quick Summary
The Eaton meter socket UTE4213TCH provides reliable metering connections for commercial electrical installations. This 200A, single-phase, 3-wire unit is designed for top/bottom feed with a 5x5 hub opening and a four-jaw, ringless configuration that simplifies service work. The lever bypass and #14-#2 Cu ground connections support safe, fast maintenance in demanding environments. A UL Listed device with broad utility approvals helps streamline inspections and code compliance. Utilities across regions—including Central Maine Power and multiple First Energy affiliates—recognize its trusted construction. For engineering and procurement teams, this means faster project approvals, reduced field labor, and a scalable metering solution that stays current with evolving standards and load requirements.
Product Information
Extended Description
UTE4213TCH Eaton: Eaton meter socket, Comm, 200A, Over/under, 5x5 inch hub open, #6-350 kcmil, 4-jaw, 1-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTE4213TCH
UPC
786685351100
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
13 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Commercial
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power MD : First Energy (Potomac Edison) VA : First Energy (Potomac Edison) WV : First Energy (Mon Power) NJ : First Energy (Jersey Central Power and Light) OH : First Energy (Ohio Edison, Toledo Edison, The Illuminating Company) PA : First Energy (Allegheny Power, MET ED, Penelec, West Penn Power) WI : WE Energies / Wisconsin Public Service (WPS)
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
5 x 5 hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTE4213TCH
Feature: 200A, 600V single-phase, 3-wire rating provides compatibility with common commercial service entrances. Business Impact: Enables reliable metering for typical commercial loads while minimizing the risk of undersizing equipment. Application: Retail, office, and light industrial facilities requiring a robust, code-compliant meter socket. Feature: Top/bottom feed with a 5x5 hub opening and four-jaw, ringless design. Business Impact: Simplifies wiring, reduces installation time, and lowers health and safety risks during servicing. Application: New builds and retrofit projects where quick, clean metering connections are essential. Feature: Lever bypass with ground connection (#14-#2 Cu). Business Impact: Fast fault isolation and straightforward maintenance, improving uptime and safety. Application: Routine meter changes, inspections, and future-proofing for evolving load profiles. Feature: UL Listed with broad utility approvals. Business Impact: Streamlines regulatory compliance and utility interconnection processes, reducing project delays. Application: Utility-approved metering installations across ME, MD, VA, WV, NJ, OH, PA, WI and beyond. Feature: Durable commercial construction with secure hub and grounding. Business Impact: Long service life, lower replacement costs, and predictable performance in demanding environments. Application: High-demand commercial metering stations in office complexes and small-scale industrial facilities.
Get a Quick Quote for a Eaton UTE4213TCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTE4213TCH?
Enquire Now
FAQs
The UTE4213TCH supports 200A, single-phase, 3-wire services with top/bottom feed and a 5x5 hub opening. Its four-jaw, ringless design and #14-#2 Cu grounding simplify wiring, while lever bypass aids maintenance. For best results, ensure compatibility with your service entrance equipment and verify UL Listed status and utility approvals for your project.
Key specs include 200A amperage rating, 600V voltage rating, single-phase, three-wire configuration, top/bottom feed, and four-jaw construction. The hub opening is 5x5 inches, with ringless security, and it features a lever bypass and ground connection suitable for #14-#2 Cu conductors.
Yes. The UTE4213TCH is UL Listed and carries broad utility approvals, including multiple regional utilities. Its 200A rating, top/bottom feed, and rugged ringless, four-jaw design make it a dependable choice for commercial metering and interconnection applications.
The meter socket is UL Listed, which proves compliance with safety and performance standards. It also carries utility approvals across several regions, helping streamline inspections and interconnection with power utilities, thereby reducing project delays and ensuring regulatory alignment.
Lever bypass simplifies servicing, and the grounding plus durable construction lowers fault risk and replacement costs. The combination of UL/utility approvals and a compact, modular design supports faster installation, reduced field labor, and a favorable total cost of ownership for commercial metering projects.
