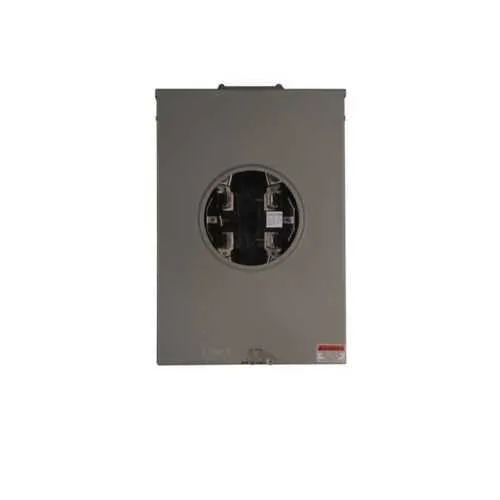

Eaton UTE4213ZCH Meter Socket - UL Listed
Part Number: UTE4213ZCH
Quick Summary
The Eaton UTE4213ZCH meter socket provides reliable, high-capacity metering for commercial electrical service installations. Engineers often struggle with versatile hub options, safe ringless terminations, and serviceability in restricted spaces. UL Listed safety certification anchors compliance, while ME Central Maine Power approval demonstrates utility compatibility; the unit is designed for 600V, 200A service. Together, these features support faster installs, reduced maintenance, and predictable lifecycle costs, with compatibility for top- or bottom-fed configurations.
Product Information
Extended Description
UTE4213ZCH Eaton: Eaton meter socket, Comm, 200A, Over/under, Large to small hub adapter, #6-350 kcmil, 4-jaw, 1-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTE4213ZCH
UPC
786685351117
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
13 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Commercial
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
5 x 5 hub opening with adapter plate
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTE4213ZCH
Selling Policy 25-000 - Distribution and Control Products and Services
The UTE4213ZCH meter socket delivers robust 200A service capability at 600V, enabling reliable metering for commercial applications while supporting stricter electrical safety and performance targets. This translates to measurable business impact: improved fault tolerance, safer terminations, and lower field callbacks during peak installation windows. In practice, the four-jaw design and ringless construction simplify wiring and reduce termination risks, particularly in retrofit projects where space is constrained and speed matters. The top/bottom feed option and 5x5 hub opening with an adapter plate provide installation flexibility across legacy and modern panels, helping installers avoid costly custom solutions and minimizing project delays. Lever bypass enhances serviceability, enabling quick maintenance without complete disassembly, which reduces downtime and labor costs on critical metering channels. Ground connections (#14-#2 Cu) and a three-wire, single-phase setup reinforce reliable grounding and compliance with common utility requirements, supporting safer commissioning and long-term reliability. The lever bypass, triplex configuration, and copper ground feed work together with UL Listed certification to streamline permit reviews and reduce risk in regulated environments. Compatibility with conductors from #6 to #350 kcmil ensures the unit can handle a wide range of feeders, simplifying stock management for procurement teams while delivering consistent performance across multiple jobs.
Get a Quick Quote for a Eaton UTE4213ZCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTE4213ZCH?
Enquire Now
FAQs
The UTE4213ZCH supports top or bottom feed with a 4-jaw design, 5x5 hub opening plus an adapter plate, and a lever bypass for easier maintenance. It is configured for three-wire, single-phase service and accepts conductors from #6 through #350 kcmil, making it suitable for retrofit and new builds in commercial metering, while ensuring safe, ringless terminations in constrained spaces.
This meter socket is rated for 200A and 600V, using a four-jaw, ringless design to minimize termination damage. It is UL Listed for safety compliance and features a copper ground connection (#14-#2 Cu) to enhance grounding reliability. The single-phase configuration with a lever bypass supports safe, efficient service and reduces downtime during maintenance or replacement.
Best suited for commercial metering and service entrances, the UTE4213ZCH is approved for utility use with ME Central Maine Power and supports 200A service with top/bottom feed. Its 5x5 hub, three-wire arrangement, and ringless design make it ideal for retrofit projects, new constructions, and spaces where quick access and safe, compliant metering connections are essential.
The meter socket carries UL Listed certification, which confirms adherence to safety standards. It also lists ME Central Maine Power as a utility approval, indicating compatibility with specific utility metering requirements. These certifications and approvals help streamline permitting and ensure reliable performance in regulated commercial metering installations.
Investing in the UTE4213ZCH yields lifecycle value through installation efficiency, reduced maintenance, and long-term reliability. Features like top/bottom feed, 5x5 hub with adapter plate, and lever bypass shorten现场 installation and service time, while UL Listed safety reduces risk of compliance problems. The unit’s compatibility with conductors #6–#350 kcmil and robust grounding support lower material waste and rework, delivering a faster return on investment.
