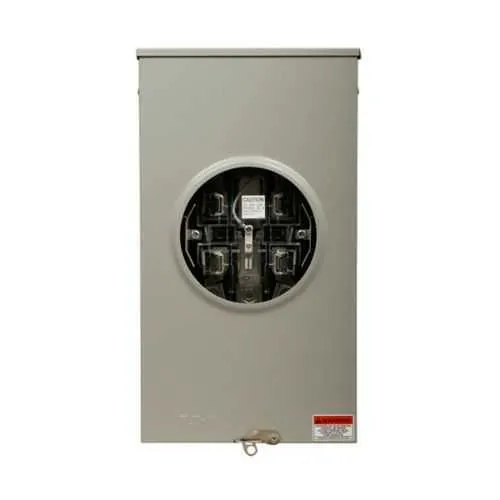

Eaton UTE5203BCH Meter Socket - UL Listed
Part Number: UTE5203BCH
Quick Summary
Engineers rely on the Eaton UTE5203BCH meter socket to deliver reliable 200A metering for commercial overhead service. This unit minimizes field downtime through a straightforward lever bypass and a single 3-wire socket arranged for quick, safe installation. The challenge in metering projects is achieving code-compliant performance while accommodating large feeders and a 600 V system. The UTE5203BCH is UL Listed, designed with a ringless body for safer operation, and built to withstand demanding commercial-duty environments. With Eaton’s warranty framework and a well-documented installation footprint, your team gains predictable performance, faster commissioning, and reduced maintenance costs. For procurement, this product aligns with reliability, safety, and total cost of ownership objectives.
Product Information
Extended Description
UTE5203BCH Eaton: Eaton meter socket, Comm, 200A, Over, 3-5/16 inch hub open, #6-350 kcmil, 5-jaw, 1-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTE5203BCH
UPC
786685351124
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
10.5 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Commercial
Amperage Rating
200A
Feed type
Overhead
Number of jaws
Five-jaw
Phase
Single-phase
Utility approvals
ME : Emera Maine (Bangor Hydro Electric Co./ Maine Public Service Company) NM : Public Service Company of New Mexico (PNM)
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
3-5/16 in hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTE5203BCH
Selling Policy 25-000 - Distribution and Control Products and Services
High amperage, single-phase, five-jaw design provides a robust metering point for 200A service; routing power through the #6-350 kcmil load and line conductors reduces lug complexity and voltage drop, delivering measurable efficiency gains on larger commercial feeders. This translates to safer terminations and smoother commissioning in overhead configurations where space and accessibility are critical. Overhead feed with a 3-5/16 in hub opening simplifies installation across a range of meter enclosures, while a ringless design minimizes snag risks during enclosure work and improves field safety during service transitions. Lever bypass enables rapid maintenance tests without de-energizing the entire system, reducing downtime and supporting safer, faster utility coordination. UL Listed certification and a 600 V rating ensure compliance and consistent performance in demanding environments. A warranty aligned with Eaton’s Selling Policy 25-000 provides enterprise-level risk mitigation and predictable support for procurement teams. Ground conn (#14-#2 Cu) and the device’s compact footprint enhance compatibility with existing electrical distributions and ease of retrofits in retrofit projects.
Get a Quick Quote for a Eaton UTE5203BCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTE5203BCH?
Enquire Now
FAQs
Yes. The UTE5203BCH is designed for overhead feed with a 3-5/16 inch hub opening and supports standard commercial meter configurations. It accommodates three-wire, ringless operation and accepts large feeders in the #6–350 kcmil range, ensuring compatibility with typical overhead service runs.
The unit is a 200A, single-phase meter socket rated for up to 600 V. It uses a three-wire configuration with five jaws and one socket, compatible with load and line conductors in the #6–350 kcmil range. This combination suits commercial metering needs while supporting lever bypass functionality.
Commercial facilities, light industrial plants, and large office buildings benefit from the UTE5203BCH. Its overhead feed design, large conductor capacity, and ringless protection make it suitable for facilities seeking reliable metering, accelerated installation, and simplified maintenance in busy electrical distributions.
The UTE5203BCH carries UL Listed certification, indicating compliance with recognized safety standards for electrical equipment. This certification supports code adherence, safer field installations, and enhanced reliability for commercial metering applications. While other certifications aren’t listed, UL Listed remains a key benchmark for performance and safety in the field.
Eaton provides a warranty aligned with Selling Policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. This coverage helps manage risk, supports maintenance planning, and ensures access to documented support for commissioning and service events in commercial metering projects.
