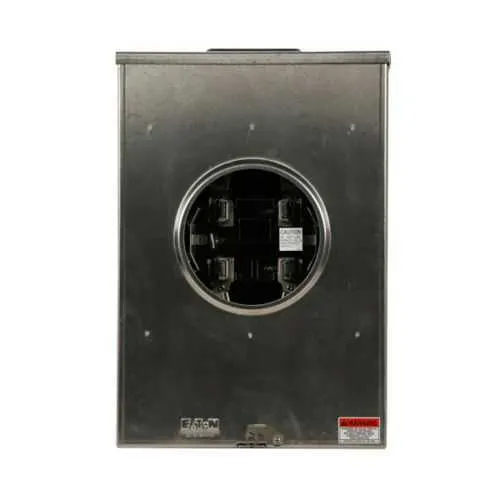

Eaton UTE5210CCH Meter Socket - UL Listed, 600V
Part Number: UTE5210CCH
Quick Summary
Eaton UTE5210CCH meter socket provides reliable metering connections for commercial and light‑industrial panels. Engineers often face installation delays and compatibility gaps when upgrading service entrances. UL Listed certification affirms electrical safety and conformance to industry standards, while the unit’s 600 V rating, top/bottom feed, and five‑jaw design deliver dependable service in demanding environments. This meter socket also supports a ringless construction with a lever bypass, enhancing safety and serviceability, and it integrates smoothly with standard commercial metering hardware. For procurement teams, the product’s robustness, readily available components, and Eaton warranty backing translate into reduced downtime and predictable performance in ongoing energy management projects.
Product Information
Extended Description
UTE5210CCH Eaton: Eaton meter socket, Comm, 200A, Over/under, 3-5/16 inch hub cover plate, 3/8 inch stud, 5-jaw, 1-ph, 3/8 inch stud, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTE5210CCH
UPC
786685351131
Product Length/Depth
4.94 in
Product Height
20.13 in
Product Width
13 in
Product Weight
26 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Commercial
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Five-jaw
Phase
Single-phase
Line
3/8 in stud
Load
3/8 in stud
Number of wires
Three-wire
Hub type
3-5/16 in hub cover plate
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTE5210CCH
200A single‑phase configuration delivers ample headroom for most commercial metering needs, while the five‑jaw design ensures a secure, low‑impedance connection that reduces voltage drop and warm‑up losses. Feature → Business Impact → Application: High‑current capability minimizes tap switching and reconfiguration costs during panel upgrades; ideal for new commercial builds or retrofit metering in office complexes. Feature → Business Impact → Application: Lever bypass support enables faster service restoration during maintenance without removing the meter socket from service, reducing downtime in critical facilities such as data centers or healthcare campuses. Feature → Business Impact → Application: Ringless body and copper grounding connection provide safer, cleaner wire terminations with simpler fault isolation, improving install quality in tightly packed switchgear rooms. Feature → Business Impact → Application: Top/bottom feed combined with a 3/8 in line/load stud simplifies routing in compact enclosures and supports modular panel designs found in retail centers and small industrial facilities. Feature → Business Impact → Application: 3‑5/16 in hub cover plate and UL Listing offer reliable compatibility with standard enclosures and formal safety verification, helping compliance teams meet code requirements with confidence. This combination of specs supports measurable outcomes such as reduced installation time, lower risk of hot spots, and stronger warranty coverage for ongoing maintenance.
Get a Quick Quote for a Eaton UTE5210CCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTE5210CCH?
Enquire Now
FAQs
Begin by confirming the panel enclosure supports a 200A, single‑phase, three‑wire meter socket. Mount the socket using the top/bottom feed arrangement, align the 3/8 in line/load studs, and secure the ground connection with #14‑#2 Cu conductors. Ensure the hub cover plate is properly seated (3‑5/16 in) and verify UL Listed compliance before energizing. This approach minimizes wiring errors and reduces commissioning time while maintaining electrical safety.
The UTE5210CCH is rated for 200A, single‑phase, three‑wire service with a 600V maximum voltage. It features top/bottom feed, five jaws, a lever bypass, and a ringless housing, making it suitable for standard commercial metering and service entrance applications in office buildings and light industrial facilities.
Yes. Designed for commercial metering, this socket provides a robust 200A, 600V, single‑phase, three‑wire configuration with UL Listed safety certification. Its top/bottom feed and lever bypass support reliable energy monitoring and rapid maintenance in high‑demand environments like retail centers and commercial complexes.
Key features include a 3‑8 in line/load stud pairing for secure connections, a 3‑5/16 in hub cover plate for standard enclosure fit, ringless construction for safer terminations, and a copper grounding path (#14‑#2 Cu). These aspects simplify field wiring, reduce termination errors, and ease future maintenance or upgrades.
The UTE5210CCH carries UL Listed certification, confirming compliance with electrical safety standards. Coupled with Eaton’s warranty policy, customers gain support for installation and service life, helping to mitigate risk during initial commissioning and ongoing operations in commercial metering projects.
