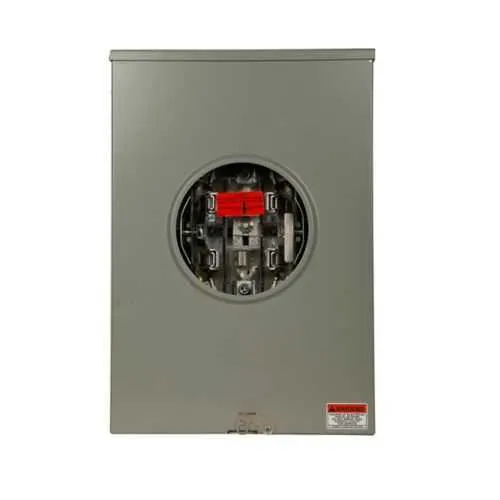

Eaton UTE5213BCH Meter Socket - UL Listed Commercial 200A
Part Number: UTE5213BCH
Quick Summary
Eaton UTE5213BCH meter socket is a reliable, single‑phase solution designed for 200A commercial service installations. Engineers often struggle with choosing a meter socket that combines safe top/bottom feed, secure ringless operation, and straightforward field wiring in tight equipment rooms. UL Listed certification provides essential safety assurance, while the unit’s 3-5/16 in hub opening and five‑jaw design support robust, code‑compliant connections. The compact footprint and lever bypass option streamline installation and maintenance, reducing downtime and labor costs. As metering technology shifts toward utility-grade reliability, this Eaton solution pairs well with standard metering products for commercial projects and light‑industrial applications.
Product Information
Extended Description
UTE5213BCH Eaton: Eaton meter socket, Comm, 200A, Over/under, 3-5/16 inch hub open, #6-350 kcmil, 5-jaw, 1-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTE5213BCH
UPC
786685351148
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
13 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Commercial
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Five-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power OH : Dayton Power and Light (DP&L) ME : Emera Maine (Bangor Hydro Electric Co./ Maine Public Service Company) MD : First Energy (Potomac Edison) VA : First Energy (Potomac Edison) WV : First Energy (Mon Power) NJ : First Energy (Jersey Central Power and Light) OH : First Energy (Ohio Edison, Toledo Edison, The Illuminating Company) PA : First Energy (Allegheny Power, MET ED, Penelec, West Penn Power) WI : WE Energies / Wisconsin Public Service (WPS) SC : South Carolina Electric and Gas (SCE&G) TX : Entergy
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
3-5/16 in hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTE5213BCH
Feature: 200A commercial, single‑phase design with top/bottom feed and five-jaw sockets. Benefit: Handles high-load commercial services with secure, repeatable connections, reducing overcurrent risks and post-install protection. Application: Ideal for office buildings, retail centers, and light industrial facilities requiring dependable 200A metering. Feature: Ringless socket with lever bypass. Benefit: Improves safety by eliminating exposed rings and enables rapid, field bypass during maintenance, cutting service interruptions and labor time. Application: Critical where uptime matters, such as data centers or multi-tenant complexes. Feature: Hub opening 3-5/16 in and compatibility with #6-350 kcmil conductors. Benefit: Flexible, code-compliant wiring options that minimize door clearance issues and simplify terminations. Application: New installs or service upgrades in tight electrical rooms. Feature: UL Listed with extensive utility approvals. Benefit: Delivers proven safety and regulatory alignment, helping project teams meet NEC, local codes, and utility interconnection requirements. Application: Widely suitable for commercial metering installations across multiple regions. Feature: Compact footprint: 4.94 in depth, 13 in wide, 19 in high, 25 lb weight. Benefit: Easier handling, faster installation, and reduced shipping/storage impacts on job sites. Application: Construction and retrofit projects where space is at a premium.
Get a Quick Quote for a Eaton UTE5213BCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTE5213BCH?
Enquire Now
FAQs
The UTE5213BCH is designed for top/bottom feed applications, accommodating #6‑350 kcmil conductors. This versatility supports both new builds and service upgrades while maintaining secure terminations and straightforward field wiring.
It is a single‑phase, 200A rated meter socket with a five‑jaw, ringless design and a 3‑5/16 in hub opening, providing robust connections and a compact footprint appropriate for commercial metering in office, retail, and light industrial facilities.
Yes, it is UL Listed, which confirms adherence to recognized safety standards. This certification supports regulatory compliance and can facilitate interconnection approvals with many utilities and local authorities.
Yes. The unit is specified as a three‑wire, single‑phase meter socket, which aligns with common service configurations for commercial and light‑industrial installations.
Leverage the lever bypass for faster maintenance, use the 3‑5/16 in hub opening to simplify wiring with large feeders, and plan for its compact footprint to minimize room and shipping costs while ensuring UL compliance and regional utility approvals.
