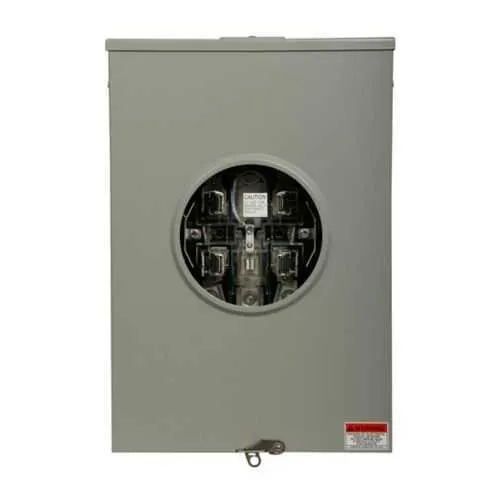

Eaton UTE5213CCH Meter Socket - UL Listed, 600 V
Part Number: UTE5213CCH
Quick Summary
The Eaton meter socket UTE5213CCH provides reliable, code-compliant service connections for commercial metering. In retrofit and new-build projects, field wiring errors and downtime drive cost and schedule risk—this unit minimizes both with a robust, installer-friendly design. UL Listed for safety and electrical compliance, it also carries broad utility approvals from ME, NM, and WI that reflect real-world installation viability. This combination supports 600 V commercial metering and 200 A service while delivering installation flexibility, reduced downtime, and predictable project timelines for contractors and building owners alike.
Product Information
Extended Description
UTE5213CCH Eaton: Eaton meter socket, Comm, 200A, Over/under, 3-5/16 inch hub cover plate, #6-350 kcmil, 5-jaw, 1-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, Three-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTE5213CCH
UPC
786685271361
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
13 in
Product Weight
26 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Commercial
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Five-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power NM : El Paso Electric TX : El Paso Electric ME : Emera Maine (Bangor Hydro Electric Co./ Maine Public Service Company) NM : Public Service Company of New Mexico (PNM) WI : WE Energies / Wisconsin Public Service (WPS)
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
3-5/16 in hub cover plate
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTE5213CCH
Feature: 200 A, single-phase, three-wire configuration with five-jaw design and ringless enclosure. Business Impact: Supports high-demand commercial metering with reliable, secure connections while reducing wiring errors and maintenance needs. Application: Ideal for commercial metering in new builds or retrofit projects needing robust, code-compliant connectors. Feature: Lever bypass for fast service isolation. Business Impact: Minimizes outage time during maintenance or replacement, boosting system uptime and reducing on-site labor costs. Application: Useful in critical facilities where downtime costs are prohibitive. Feature: Top/bottom feed with 3-5/16 in hub cover plate and 600 V rating. Business Impact: Flexible installation options and compatibility with large feeders, improving install speed and safety. Application: Suitable for ringless, three-wire metering in modern electrical distributions. Feature: Utility approvals and UL Listed certification. Business Impact: Simplifies permit approval and compliance, accelerating project schedules. Application: Meets regional utility acceptance for grid-ready metering solutions. Feature: Compact dimensions (4.94 in depth, 19 in height, 13 in width) and 26 lb weight. Business Impact: Easier handling and space planning in equipment rooms, reducing layout constraints. Application: Retrofit and new-construction metering installations where space is at a premium.
Get a Quick Quote for a Eaton UTE5213CCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTE5213CCH?
Enquire Now
FAQs
The UTE5213CCH is a 200 A, single-phase, three-wire meter socket with top/bottom feed and a 3-5/16 inch hub cover plate. It accepts #6-350 kcmil conductors, features a five-jaw ringless design, and lever bypass for quick isolation. Installers should verify panel clearance, conductor sizing, and adherence to local electrical codes before mounting.
Key specs include 200 A amperage rating, 600 V voltage rating, single-phase operation, three-wire configuration, five-jaw sockets, lever bypass, and a ringless housing. It supports top or bottom feed and accepts #6-350 kcmil conductors. The unit is UL Listed and designed for commercial metering applications with reliable service reliability.
Yes. Its 200 A capacity, 600 V rating, and single-phase, three-wire design fit typical commercial metering needs. The hub cover plate and top/bottom feed offer installation flexibility, while the levers bypass enable fast maintenance. Its UL Listed status and utility approvals support code compliance and regional acceptance for both new builds and retrofits.
The UTE5213CCH carries UL Listed certification, signifying compliance with safety standards. It also lists utility approvals for multiple regions (ME, NM, WI), indicating broad acceptance for grid-connected metering projects. These certifications help streamline permitting and ensure compatibility with many utilities' metering requirements.
Lever bypass simplifies service isolation, reducing downtime during maintenance or metering swaps and improving overall system availability. The ringless design minimizes contact risk and wiring exposure. With a standard warranty window and Eaton support, long-term reliability lowers maintenance costs and extends service life, delivering a favorable total cost of ownership for commercial metering deployments.
