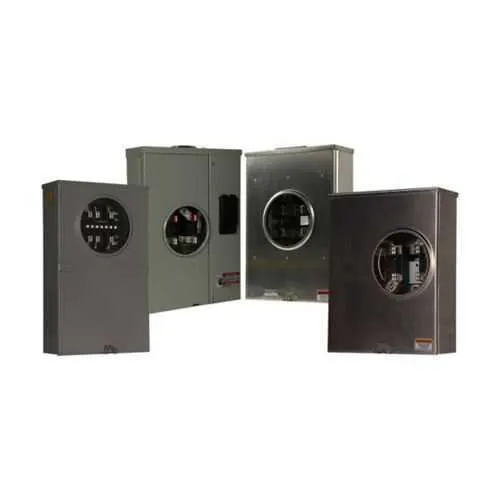

Eaton UTE5213CXCH Meter Socket - UL Listed 600V
Part Number: UTE5213CXCH
Quick Summary
Eaton meter socket enables reliable residential and commercial power measurement and service connections. It addresses common pain points like secure ringless terminations and quick bypass during servicing, reducing downtime and field calls. UL Listed certification and a 600 V rating align with safety standards, while the commercial design supports a 200 A capacity for building loads. This unit combines top/bottom feed compatibility with a 3-5/16 in hub cover plate, delivering installation flexibility and safer electrical distribution. For engineers and procurement teams, this Eaton solution offers a durable, standards-driven option that simplifies specification, quoting, and on-site installation.
Product Information
Extended Description
UTE5213CXCH Eaton: Eaton meter socket, Comm, 200A, Over/under, 3-5/16 inch hub cover plate, #6-350 kcmil, 5-jaw, 1-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTE5213CXCH
UPC
786680195860
Product Length/Depth
19.5 in
Product Height
4.5 in
Product Width
13 in
Product Weight
26 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Commercial
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Five-jaw
Phase
Single-phase
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
3-5/16 in hub cover plate
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Eaton Specification Sheet - UTE5213CXCH
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 200 A amperage rating in a single-phase, five-jaw, three-wire configuration. Business Impact: Supports typical commercial and light industrial service loads, reducing the need for mid-project upgrades and ensuring reliable power distribution. Application: Ideal for commercial service entrances and retrofit projects where space and wiring options are critical. Feature: Ringless design with lever bypass. Business Impact: Enhances safety and maintenance efficiency by enabling service work without disturbing the entire installation and minimizing downtime. Application: Utility-style service rooms and busy facilities where rapid maintenance is required. Feature: Lever bypass and secure feed options with top/bottom entry. Business Impact: Provides flexible maintenance pathways and faster installation in constrained spaces, lowering labor costs. Application: Retail, office, and healthcare facilities needing adaptable service connections. Feature: Hub cover plate accommodating #6–350 kcmil conductors. Business Impact: Supports high-capacity terminations, reducing the need for rework when conductor sizes change. Application: Large feeder connections and upgrade projects in new builds or major remodels. Feature: UL Listed and 600 V rated. Business Impact: Demonstrates compliance with safety standards, easing code approvals and insurance considerations. Application: Commercial and industrial installations requiring proven safety credentials. Feature: Compact footprint with 19.5 in length, 13 in width, and 4.5 in height. Business Impact: Fits standard electrical rooms and cabinets, speeding installation and reducing space costs. Application: Retrofit and new construction where space is at a premium.
Get a Quick Quote for a Eaton UTE5213CXCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTE5213CXCH?
Enquire Now
FAQs
The UTE5213CXCH supports top or bottom feed in a single-phase, 200 A configuration with a five-jaw, three-wire arrangement. It accepts conductors in the #6–350 kcmil range and uses a 3-5/16 in hub cover plate, simplifying field terminations and reducing cabinet space needs. This versatility makes it suitable for commercial service entrances and retrofit projects where space and wiring options are critical.
Lever bypass provides a controlled path around the meter socket during maintenance, allowing crews to service wiring without a full service outage. This feature minimizes downtime, improves safety by isolating the work area, and supports faster turnarounds for critical facilities. Paired with ringless field installation, it enhances reliability in busy electrical rooms.
Key specs include a 200 A amperage rating, 600 V voltage rating, single-phase operation, five-jaw sockets, three-wire configuration, and top/bottom feed capability. Hub type is 3-5/16 in, and the unit is UL Listed for safety. The design accommodates #6–350 kcmil conductors, providing a robust solution for high-capacity service connections.
Yes. The UTE5213CXCH is UL Listed and rated for 600 V systems, making it appropriate for commercial meter installations. Its ringless design and safety features align with typical utility and building codes, while its 200 A capacity supports moderate to large office and retail loads. Always verify local code requirements and panel compatibility during specification.
Ensure enclosure suitability and proper conductor sizing for #6–350 kcmil, verify hub clearance, and apply correct torque on lugs. Use the top/bottom feed as specified and confirm grounding requirements, access clearances for bypass operation, and relevant UL certification documentation in project files to support inspections and future maintenance.
