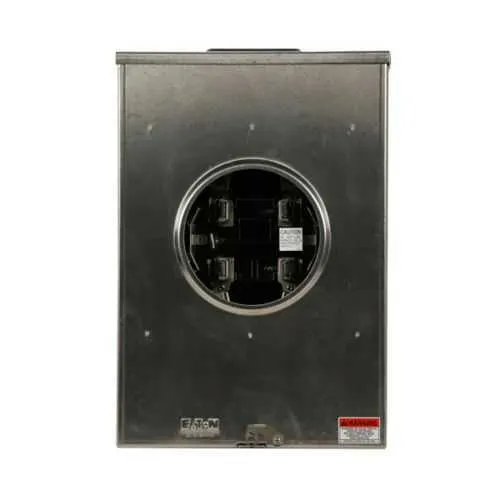

Eaton UTE5213UFLCH Meter Socket - UL Listed 600 V
Part Number: UTE5213UFLCH
Quick Summary
Meter socket by Eaton is a rugged, single-phase 200A solution for commercial metering in buildings. Contractors often wrestle with compatibility between feeds, hubs, and utility requirements, which can delay projects and raise costs. This unit carries UL Listed certification and MEG utility approvals across multiple states, supporting safe, compliant installations in Duke Energy, Florida Power, and other networks. The 5x5 hub opening, five-jaw configuration, and ringless design simplify wiring and service transitions, while the lever bypass enhances serviceability during maintenance. With top/bottom feed, #6–350 kcmil conductors, and a 600 V rating, it offers scalable performance for evolving electrical systems and tight project timelines.
Product Information
Extended Description
UTE5213UFLCH Eaton: Eaton meter socket, Comm, 200A, Over/under, 5x5 inch hub open, #6-350 kcmil, 5-jaw, 1-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTE5213UFLCH
UPC
786685351186
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
13 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Commercial
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Five-jaw
Phase
Single-phase
Utility approvals
FL : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) IN : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) KY : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) NC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) OH : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) SC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) FL : Tallahassee City Electric
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
5 x 5 hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTE5213UFLCH
Feature: 200A, single-phase service rating supports common commercial metering needs while avoiding oversizing; Business Impact: optimizes material costs and ensures headroom for short-duration surges; Application: ideal for small to mid-size commercial facilities and storefronts. Feature: Top/bottom feed and a 5x5 hub opening provide installation flexibility in confined spaces; Business Impact: accelerates wiring and reduces labor time during commissioning; Application: retrofit projects and new-build metering locations. Feature: Five-jaw, ringless design simplifies connection integrity and maintenance access; Business Impact: lowers contact resistance and minimizes service interruptions; Application: reliable metering for busy commercial environments. Feature: 600 V rating paired with #6–350 kcmil load and feed conductors; Business Impact: supports high-capacity feeders with safe, compliant performance; Application: medium-voltage-like readiness for commercial utilities. Feature: Lever bypass and a single socket option streamline field maintenance and future upgrades; Business Impact: reduces downtime and total cost of ownership; Application: ongoing serviceability in regulated metering applications. Feature: Certifications and approvals including UL Listed and MEG utility approvals; Business Impact: mitigates regulatory risk and accelerates permit-ready installations; Application: installation across multiple utility jurisdictions with confidence.
Get a Quick Quote for a Eaton UTE5213UFLCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTE5213UFLCH?
Enquire Now
FAQs
The unit supports top or bottom feed and uses a 5x5 hub opening with five jaws to accommodate #6–350 kcmil conductors. It is ringless and includes a lever bypass for easier maintenance. Plan for a space that accommodates a 4.94 in depth, 13 in width, and 19 in height, and ensure 600 V rating compliance for the site.
This meter socket is UL Listed and carries MEG utility approvals across multiple states, including networks like Duke Energy and Florida Power. These certifications confirm safety, reliability, and regulatory compliance, helping projects meet utility interconnection requirements and reducing installation risk.
Yes. The device supports a broad conductor range from #6 up to 350 kcmil, enabling high-capacity feeders. With a 200A rating and 600V capability, it accommodates substantial commercial loads while maintaining safe terminations and robust service reliability.
Warranty terms follow Eaton policy 25-000, offering one year from installation or 18 months from shipment, whichever occurs first. This coverage supports service reliability and post-installation support, ensuring parts availability and access to Eaton technical resources when needed.
This meter socket is designed for commercial metering in buildings such as retail, office, and multi-tenant facilities. Its 200A rating, 600 V capability, 5x5 hub, top/bottom feed, and MEG/UL certifications make it a strong fit for regulated metering installations requiring reliable performance and regulatory compliance.
