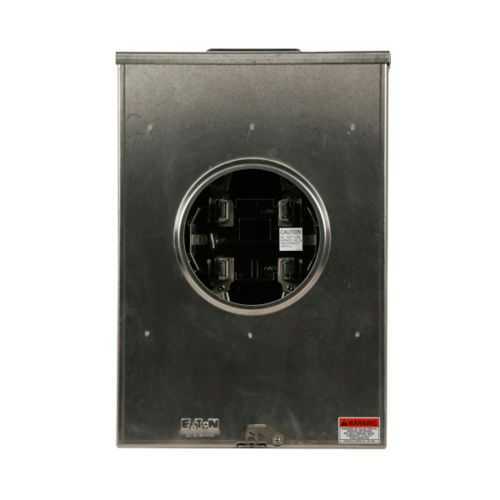

Eaton UTE7203BCH Meter Socket Commercial - UL Listed
Part Number: UTE7203BCH
Quick Summary
The Eaton UTE7203BCH meter socket is a heavy-duty electrical interface for utility-grade metering in commercial and industrial facilities. Engineers often face integration with existing service equipment, wiring complexity, and meeting safety and utility requirements during retrofit projects. UL Listed certification and select utility approvals help simplify field compliance, with CMP, Emera Maine, and PNM among validated users. This unit is designed for 200A, 3-phase, 4-wire service with overhead feed and a 600 VAC rating, delivering reliable metering while reducing installation time and risk. By combining robust construction with practical features, it supports faster, safer deployments and long-term reliability in demanding environments.
Product Information
Extended Description
UTE7203BCH Eaton: Eaton meter socket, Comm, 200A, Over, 3-5/16 inch hub open, #6-350 kcmil, 7-jaw, 3-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 4-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTE7203BCH
UPC
786685351209
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
10.5 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Commercial
Amperage Rating
200A
Feed type
Overhead
Number of jaws
Seven-jaw
Phase
Three-phase
Terminals
7
Utility approvals
ME : Central Maine Power ME : Emera Maine (Bangor Hydro Electric Co./ Maine Public Service Company) NM : Public Service Company of New Mexico (PNM)
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Four-wire
Hub type
3-5/16 in hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTE7203BCH
Feature: 200A, 3-phase, 4-wire service with overhead feed. Business Impact: Supports high-load commercial applications with proven distribution capacity, improving utility compatibility and reducing upgrade cycles. Application: Ideal for commercial and light industrial metering where service reliability and expandability matter. Feature: Seven-jaw, seven-terminal configuration with lever bypass and ringless ground connection. Business Impact: Enhances connection integrity, simplifies fault-isolation procedures, and minimizes service interruptions during maintenance. Application: Critical metering installations in retrofit or new-build projects requiring quick bypass operation and robust grounding. Feature: Hub opening 3-5/16 inches and conductor range #6-350 kcmil. Business Impact: Accommodates large feeders and triple-wire setups, enabling flexible wiring schemes and fewer terminations. Application: Overhead service entries in commercial panels and metering enclosures. Feature: 600V rating and UL Listed certification. Business Impact: Ensures compliance with safety standards and utility requirements, reducing QA steps. Application: Suitable for regulated metering environments and utility-approved installations. Feature: Grounding and protection details #14-#2 Cu terminals with triplex, four-wire configuration. Business Impact: Delivers reliable grounding and safe operation under normal and fault conditions, lowering risk of loops or faults. Application: Industrial metering where robust grounding and clear fault pathways are essential.
Get a Quick Quote for a Eaton UTE7203BCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTE7203BCH?
Enquire Now
FAQs
The UTE7203BCH is designed for overhead feed, 200A three‑phase, four‑wire service with a 3-5/16 inch hub opening. It accepts #6-350 kcmil conductors and uses a seven‑jaw, seven‑terminal configuration with ringless grounding and lever bypass. This combination simplifies retrofit and new-construction metering work while maintaining a compact footprint in standard meter enclosures.
Key specs include a 200A amperage rating, three-phase, four-wire configuration, 600V voltage rating, 3-5/16 in hub opening, and seven jaws/terminals. It is UL Listed and rated for overhead feed. The load and line use #6-350 kcmil conductors, with a ground connection suitable for Cu #14 to #2. These details drive compatibility with common commercial/industrial metering setups.
Best suited for commercial and light-industrial metering applications requiring reliable 200A service, overhead feeds, and 600V operation. Its ringless ground, lever bypass, and 4-wire configuration support safe fault clearance and service continuity. Utilities approving CMP, Emera Maine, and PNM make it a solid choice for utility-specified metering at new facilities or retrofit projects.
The unit is UL Listed, ensuring recognized safety compliance. It also lists utility approvals including CMP Central Maine Power, Emera Maine, and PNM (Public Service Company of New Mexico), which validate compatibility for specific utility districts and streamline permit and inspection processes in those regions.
Maintenance is straightforward due to ringless grounding, lever bypass for quick fault isolation, and robust mechanical design that tolerates heavy service conditions. ROI benefits include reduced downtime during maintenance, easier upgrades to larger feeders, and faster installation times thanks to clear conductor ranges (#6-350 kcmil) and a compact 4.94 in depth with a 19 in height.
