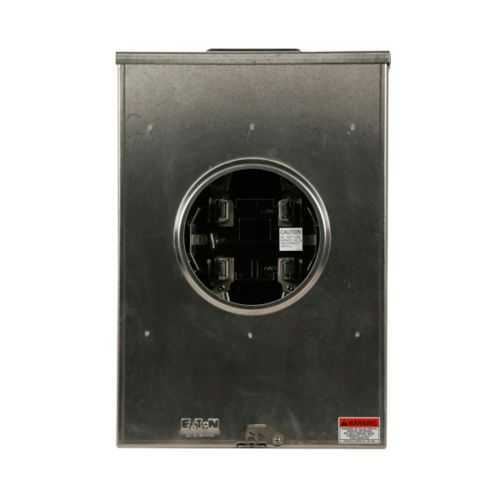

Eaton UTE7203TCH Meter Socket - UL Listed

Feature: 200A, 600V, three-phase four-wire configuration. Business Impact: Supports large commercial loads while maintaining safety margins and standard wiring practices. Application: Overhead service entrances for retail centers, office campuses, and light industrial facilities. Feature: Overhead feed design with a 5 x 5 hub opening and seven-jaw capacity. Business Impact: Enables use of #6-350 kcmil conductors, accommodating high current and long feeders without field splices. Application: High-capacity feeds and compact metering installations where space is constrained. Feature: Lever bypass for quick, safe service isolation. Business Impact: Reduces downtime during testing and maintenance by enabling controlled bypass without disconnecting upstream sources. Application: Critical for metering points where rapid isolation is required during service work. Feature: Ringless enclosure for tamper resistance and security. Business Impact: Improves safety and NEC compliance while reducing accidental ground faults. Application: New builds and replacements in regulated markets. Feature: Ground connection rated #14-#2 Cu. Business Impact: Provides robust grounding for fault protection and reliable operation. Application: Utility-grade metering and 600V distribution networks. Feature: Certifications and approvals: UL Listed; ME Central Maine Power; MI Upper Peninsula Power. Business Impact: Streamlines utility interconnection, reduces approval cycles, enhances procurement confidence. Application: Projects with utility pre-approval requirements. Feature: Compact footprint: 4.94 in depth, 19 in height, 10.5 in width; weight 25 lb. Business Impact: Easier handling, faster installation, and lower shipping costs. Application: Retrofit and new construction where space is at a premium.
