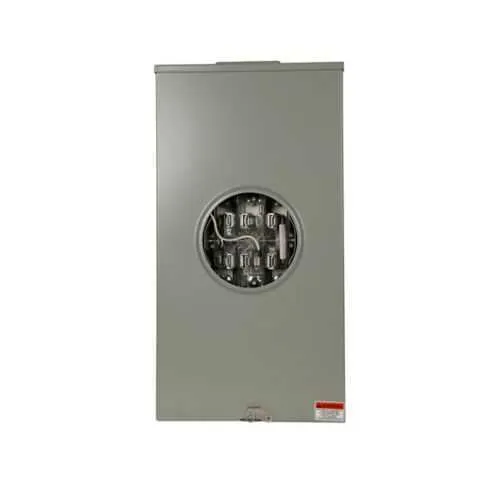

Eaton UTE7210UCH Meter Socket - UL Listed 600V Commercial
Part Number: UTE7210UCH
Quick Summary
Eaton meter socket enables reliable 200A three-phase service connections for commercial facilities. Maintenance challenges like outages and safety concerns are easier to manage with a lever bypass, top/bottom feed, and a ringless hub that minimizes tampering risk. The design carries UL Listed certification and PEPCO approvals for DC and MD, giving confidence in regulatory-compliant metering installations. For installers and procurement teams, the compact 24.69 inch height, 13 inch width, and 4.94 inch depth translate to straightforward fit and predictable field performance, while 29 lb weight keeps handling practical on site. This combination supports faster commissioning and lower lifecycle costs in commercial power distribution.
Product Information
Extended Description
UTE7210UCH Eaton: Eaton meter socket, Comm, 200A, Over/under, 5x5 inch hub cover plate, 3/8 inch stud, 7-jaw, 3-ph, 3/8 inch stud, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 4-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTE7210UCH
UPC
786685351223
Product Length/Depth
4.94 in
Product Height
24.69 in
Product Width
13 in
Product Weight
29 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Commercial
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Seven-jaw
Phase
Three-phase
Utility approvals
DC : PEPCO MD : PEPCO
Line
3/8 in stud
Load
3/8 in stud
Number of wires
Four-wire
Hub type
5 x 5 hub cover plate
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTE7210UCH
Feature: 200A amperage rating and three-phase, four-wire configuration. Business Impact: Supports high-load commercial metering with robust fault tolerance, enabling safer distribution of electricity across office, retail, and light industrial facilities. Application: Ideal for commercial service entrances requiring reliable 200A service with clear, code-compliant connections. Feature: Top/bottom feed with seven-jaw socket. Business Impact: Provides versatile installation options and a secure, multi-point connection to the service conductors, reducing rework and field adjustments. Application: Fits standard commercial feeder runs and supports streamlined commissioning. Feature: 5 x 5 hub cover plate and ringless design. Business Impact: Simplifies field service access while minimizing device tampering and enclosure openings, improving safety and compliance. Application: Useful in regulated environments where tamper resistance and service integrity matter. Feature: Lever bypass for continuous service during maintenance. Business Impact: Keeps circuits reachable for inspection or load shedding without complete power shutdown, reducing downtime and maintenance windows. Application: Essential for critical facilities and busy commercial sites. Feature: Grounding with #14-#2 Cu and four-wire configuration. Business Impact: Ensures solid grounding and reduced fault impedance, supporting electrical safety and code compliance. Application: Critical for grounding integrity in large-meter installations. Feature: UL Listed and PEPCO utility approvals. Business Impact: Enhances regulatory acceptance and simplifies project approval processes, accelerating procurement and installation. Application: Suitable for utility-served commercial meters across DC and MD jurisdictions. Feature: Dimensions and weight (24.69 in x 13 in x 4.94 in; 29 lb). Business Impact: Predictable footprint aids in planning electrical rooms and enclosures, enabling faster layout and rack integration. Application: Easy to spec into mechanical room layouts and service enclosures.
Get a Quick Quote for a Eaton UTE7210UCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTE7210UCH?
Enquire Now
FAQs
The UTE7210UCH is rated for 200A and supports a three-phase, four-wire configuration with top or bottom feed. It uses a seven-jaw connection and 3/8 inch line/load lugs to accommodate standard commercial feeders, delivering reliable service for mid-to-large commercial installations while enabling efficient field wiring and future expandability.
Yes, the UTE7210UCH is UL Listed, providing recognized safety and performance compliance for commercial metering. It also carries utility approvals from PEPCO for DC and MD, which supports regulatory acceptance in utility-served projects and helps streamline installation approvals.
The meter socket measures 24.69 inches in height, 13 inches in width, and 4.94 inches in depth, with an approximate weight of 29 pounds. These dimensions and weight facilitate planning in mechanical rooms, service enclosures, and racking layouts, enabling straightforward placement and mounting.
Designed for commercial metering, the UTE7210UCH fits 200A, four-wire, three-phase service with top/bottom feed and a ringless hub. It is ideal for office buildings, retail centers, data centers, and light industrial facilities where reliable metering, quick maintenance, and regulatory compliance are priorities.
Lever bypass allows service personnel to perform maintenance without fully removing power, reducing downtime. The ringless hub design minimizes enclosure openings, lowering tamper risks and improving safety during servicing. Together, these features support faster, safer maintenance in busy commercial environments.
