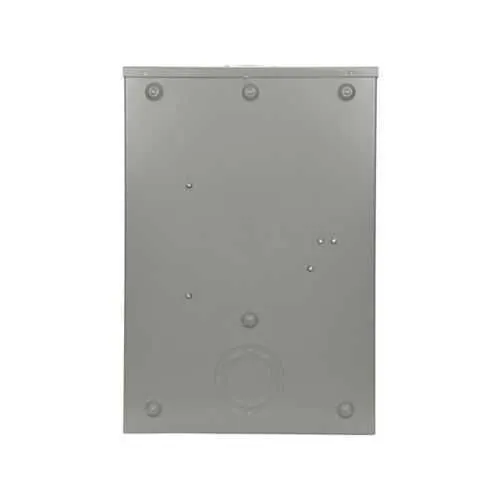

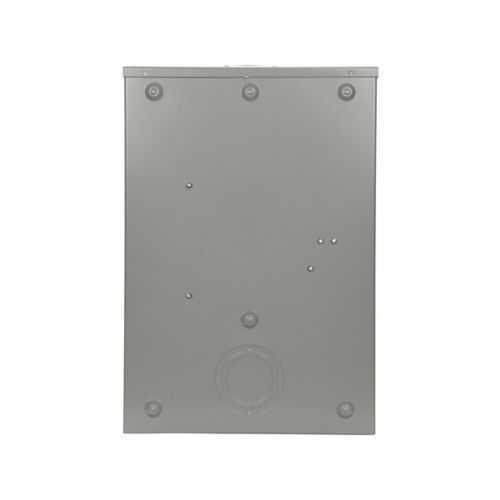

Eaton Meter Socket UTE7213BCH - UL Listed
Part Number: UTE7213BCH
Quick Summary
The Eaton Meter Socket UTE7213BCH provides a reliable, 200A three‑phase meter connection tailored for commercial service entrances. This compact, ringless design simplifies installation while delivering secure, code-compliant metering. For engineers and procurement teams, the 3-5/16 in hub opening and top/bottom feed options reduce conduit clutter and wiring challenges in tight spaces. UL Listed certification and multi-utility approvals underscore safety and regulatory compliance across major service territories, helping streamline project sign‑offs. By aligning with 600 Vac ratings and conductors up to #6-350 kcmil, this meter socket supports robust power distribution with lower long-term maintenance costs. In practice, it translates to faster commissioning, improved reliability, and predictable total cost of ownership.
Product Information
Extended Description
UTE7213BCH Eaton: Eaton meter socket, Comm, 200A, Over/under, 3-5/16 inch hub open, #6-350 kcmil, 7-jaw, 3-phase, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 4-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTE7213BCH
UPC
786685351230
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
13 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Commercial
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Seven-jaw
Phase
Three-phase
Utility approvals
ME : Central Maine Power OH : Dayton Power and Light (DP&L) ME : Emera Maine (Bangor Hydro Electric Co./ Maine Public Service Company) MD : First Energy (Potomac Edison) VA : First Energy (Potomac Edison) WV : First Energy (Mon Power) NJ : First Energy (Jersey Central Power and Light) OH : First Energy (Ohio Edison, Toledo Edison, The Illuminating Company) PA : First Energy (Allegheny Power, MET ED, Penelec, West Penn Power) NM : Public Service Company of New Mexico (PNM) WI : WE Energies / Wisconsin Public Service (WPS) NY : Rochester Gas & Electric (RG&E) SC : South Carolina Electric and Gas (SCE&G) TX : Entergy NM : Texas-New Mexico Power (TNMP) TX : Texas-New Mexico Power (TNMP)
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Four-wire
Hub type
3-5/16 in hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTE7213BCH
Feature: 200A, three-phase, four-wire configuration supports high-demand commercial loads with robust performance. Business Impact: Enables reliable service for mid-size facilities while reducing overload risk and future upgrade headaches. Application: commercial office buildings, retail campuses, and light industrial facilities. Feature: 3-5/16 in hub opening and top/bottom feed flexibility simplifies routing and reduces conduit rework. Business Impact: cuts installation time and labor costs, accelerating project timelines. Application: new builds and retrofit projects in space-constrained equipment rooms. Feature: Seven-jaw ringless design enhances compactness and reduces arc flash exposure during wiring. Business Impact: safer installations and easier conductor organization, supporting faster commissioning. Application: dense electrical rooms and multi-tenant installations. Feature: Lever bypass provides a quick, controlled bypass path for metering maintenance. Business Impact: minimizes downtime during metering work and facilitates service interruptions with minimal disruption. Application: utility maintenance windows and ongoing facility operations. Feature: UL Listed certification plus extensive utility approvals across multiple jurisdictions. Business Impact: streamlines compliance and approval cycles, reducing project risk. Application: commercial metering programs in regulated markets. Feature: 4-wire, 600V rating with high-conductor capacity (#6-350 kcmil). Business Impact: supports modern power distribution standards and large feeder sizes, improving reliability. Application: service entrances for large commercial or light industrial facilities.
Get a Quick Quote for a Eaton UTE7213BCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTE7213BCH?
Enquire Now
FAQs
The meter socket is designed for top or bottom feed and accepts #6-350 kcmil conductors in a 4-wire, three-phase configuration. Mounting in standard enclosures with a 3-5/16 in hub opening reduces conduit and cable routing complexity, helping electricians complete the installation efficiently while maintaining compliance with UL safety standards.
It provides a 200A rating, 600V capacity, seven-jaw sockets, and a ringless design that supports clean, reliable connections for four-wire systems. These features align with common commercial metering practices, ensuring secure power distribution and straightforward expansion when loads grow.
Yes. The top/bottom feed capability accommodates various installation layouts, while the lever bypass enables quick, controlled maintenance without complete disconnection, reducing downtime and improving service continuity for customers.
The UTE7213BCH is UL Listed, and Eaton lists extensive utility approvals across multiple jurisdictions, indicating broad regulatory compliance and facilitating project approvals in many service territories.
Beyond the initial purchase, engineers should consider labor savings from easier installation, reduced downtime due to lever bypass, and lower maintenance costs from a durable, UL-listed design. The unit’s compatibility with standard conductors up to #6-350 kcmil and a 600V rating further support long-term reliability and predictable operation in commercial settings.
