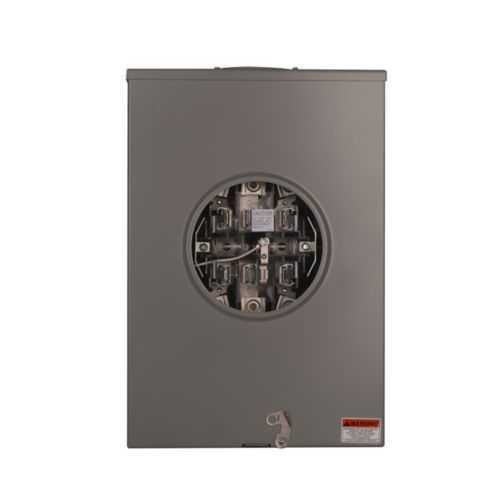

Eaton UTE7213TCH Meter Socket - UL Listed 600V
Part Number: UTE7213TCH
Quick Summary
The Eaton meter socket delivers reliable service connections for commercial and industrial electrical installations. For engineers and contractors facing space constraints, wiring flexibility challenges, and regulatory compliance, this unit’s top and bottom feed, four‑wire configuration, and seven‑jaw, ringless design simplify installation while maximizing safety. UL Listed, with a 600 V rating and 200 A capacity, it supports heavy loads in commercial metering applications. The device is compatible with common utility approvals and Eaton accessories, reducing field modifications and retrofit time. With a one-year Eaton warranty (or eighteen months from shipment), it delivers predictable total cost of ownership while enabling compliant power distribution for growing facilities. Secondary benefits include robust grounding options and ready-to-install lever bypass for service testing.
Product Information
Extended Description
UTE7213TCH Eaton: Eaton meter socket, Comm, 200A, Over/under, 5x5 inch hub open, #6-350 kcmil, 7-jaw, 3-ph, #6-350 kcmil, Lever bypass, Gnd con (#14-#2 Cu), Triplex, Four-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTE7213TCH
UPC
786685351261
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
13 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Commercial
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Seven-jaw
Phase
Three-phase
Utility approvals
NY : Central Hudson Gas & Electric (CHG&E) ME : Central Maine Power OH : Dayton Power and Light (DP&L) MD : First Energy (Potomac Edison) VA : First Energy (Potomac Edison) WV : First Energy (Mon Power) NJ : First Energy (Jersey Central Power and Light) OH : First Energy (Ohio Edison, Toledo Edison, The Illuminating Company) PA : First Energy (Allegheny Power, MET ED, Penelec, West Penn Power) WI : WE Energies / Wisconsin Public Service (WPS) SC : South Carolina Electric and Gas (SCE&G) TX : Entergy NM : Texas-New Mexico Power (TNMP) TX : Texas-New Mexico Power (TNMP)
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Four-wire
Hub type
5 x 5 hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTE7213TCH
The 200A three‑phase, four‑wire service capability enables reliable heavy‑duty metering for commercial facilities while reducing upstream equipment requirements and panel count. This translates to lower installation costs and faster project completion on mid‑size builds. The top/bottom feed design and 5x5 hub opening provide installation flexibility, allowing quick alignment in tight enclosures and easier retrofits where feeder access varies. The seven‑jaw, ringless construction secures conductor terminations with a tamper‑resistant profile, boosting long‑term reliability and reducing maintenance calls in harsh environments. Lever bypass and grounded (#14‑#2 Cu) options support rapid service isolation for testing and safer uptime during routine maintenance. The Triplex, four‑wire arrangement with a 600 VAC rating supports demanding three‑phase loads while maintaining proper grounding and fault protection. UL Listed certification and broad utility approvals simplify code compliance and interconnection across multiple regions, easing procurement and installation. A standard Eaton warranty further reduces lifecycle risk and supports confident procurement for distributed energy and metering projects.
Get a Quick Quote for a Eaton UTE7213TCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTE7213TCH?
Enquire Now
FAQs
The UTE7213TCH is designed for commercial and light industrial metering applications. It supports three‑phase, four‑wire service at 200 A with a 600 V rating, top/bottom feed, and a 5x5 hub opening. Its seven‑jaw, ringless design simplifies field wiring, while UL Listed compliance ensures it meets primary safety standards for utility interconnection and building codes.
The unit features seven‑jaw termination for the line and load conductors and provides a single meter socket per assembly. It is a four‑wire, three‑phase configuration designed to accommodate conductors in the #6–#350 kcmil range, enabling robust, secure connections in demanding metering environments.
The meter socket carries broad utility approvals across multiple regions, including major U.S. utilities and states cited in Eaton’s specifications. This simplifies interconnection for projects in New York, Maine, Ohio, Maryland, Virginia, West Virginia, New Jersey, Wisconsin, South Carolina, Texas, and Texas‑New Mexico Power, helping projects avoid last‑mile delays.
The lever bypass allows rapid isolation of the meter circuit for testing or maintenance without disconnecting service to the building. This minimizes downtime, improves technician safety, and speeds commissioning in both new installations and retrofit projects, especially when metering must be serviced without impacting downstream equipment.
Eaton provides a standard warranty per policy 25‑000: one year from installation or eighteen months from shipment, whichever occurs first. This, combined with UL Listed certification and readily available specification sheets, offers project teams clear risk management and ongoing access to technical support and replacement parts.
