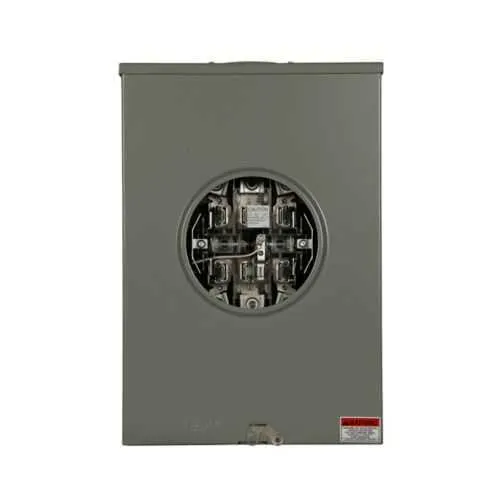

Eaton UTE7213THLCH Meter Socket - UL Listed, 600V
Part Number: UTE7213THLCH
Quick Summary
Eaton UTE7213THLCH meter socket provides reliable metering for commercial service entrances and energy-management projects. Selecting the right meter socket can be challenging when you encounter mismatched jaw counts, hub sizes, or bypass options that complicate installation. UL Listed certification paired with TX utility approvals strengthens compliance and streamlines utility acceptance for field installs. This solution is designed for fast, maintenance-friendly deployment, supporting a 200A service with a 600V rating and top/bottom feed. By combining robust construction with clear electrical parameters, it delivers a solid foundation for scalable metering in commercial buildings while aligning with industry standards and cost-of-ownership considerations.
Product Information
Extended Description
UTE7213THLCH Eaton: Eaton meter socket, Comm, 200A, Over/under, 5x5 inch hub open, #6-350 kcmil, 7-jaw, 1-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTE7213THLCH
UPC
786685351278
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
13 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Commercial
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Seven-jaw
Phase
Single-phase
Utility approvals
TX : Oncor TX : Pedernales Electric Cooperative
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
5 x 5 hub opening
Connection
Ground connection
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTE7213THLCH
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 200A amperage rating with 600 V, single-phase, three-wire configuration. Impact: supports full-load metering for many commercial feeders without oversizing or under-protecting circuits. Application: ideal for service entrances and commercial metering closets. Feature: seven-jaw design, 5Ă—5 hub opening. Impact: improves conductor routing and reduces misalignment risk; Application: ready for #6-350 kcmil line/load. Feature: ringless ground connection and lever bypass. Impact: enhances safety during servicing and simplifies maintenance; Application: supports quick replacement and reduced downtime in busy commercial environments. Feature: Top/bottom feed and 600V rating. Impact: provides flexible installation options and robust protection for medium-size commercial feeders; Application: aligns with standard metering practices in busy facilities. Feature: UL Listed and utility-approved (Oncor, Pedernales). Impact: ensures regulatory compliance and utility acceptance; Application: suitable for TX-metering projects and other regulated markets. Feature: 1 socket, 3-wire, commercial type. Impact: simplifies cataloging and stocking for distributors; Application: streamlines procurement for electrical contractors working on commercial builds.
Get a Quick Quote for a Eaton UTE7213THLCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTE7213THLCH?
Enquire Now
FAQs
The UTE7213THLCH installs in commercial service panels using a top/bottom feed and a seven-jaw, 5x5 hub opening. It accepts #6-350 kcmil conductors for both line and load, and incorporates a ground connection and ringless design to reduce installation errors. Use the lever bypass to service circuits without removing the device.
This meter socket is UL Listed and has Texas utility approvals from Oncor and Pedernales Electric Cooperative. It is rated for 600 V and 200 A, with a three-wire, single-phase configuration, making it suitable for commercial metering in Texas and similar markets with strict utility requirements.
The UTE7213THLCH is designed for commercial metering with a 200 A rating and three-wire configuration. While it can be used in larger residential feeders in some cases, always verify with the local utility and project requirements. For typical residences with lower demand, a smaller, residential-rated socket is usually preferred.
The meter socket supports line and load conductors ranging from #6 up to 350 kcmil. Its seven-jaw configuration, 5x5 hub opening, and ground connection support reliable, large-diameter connections for high-demand commercial feeders while maintaining a ringless interface to reduce installation risk.
Warranty follows Eaton Selling Policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first, with coverage for defects in materials and workmanship. This is complemented by UL Listing and utility approvals, helping ensure field reliability and predictable maintenance budgeting.
