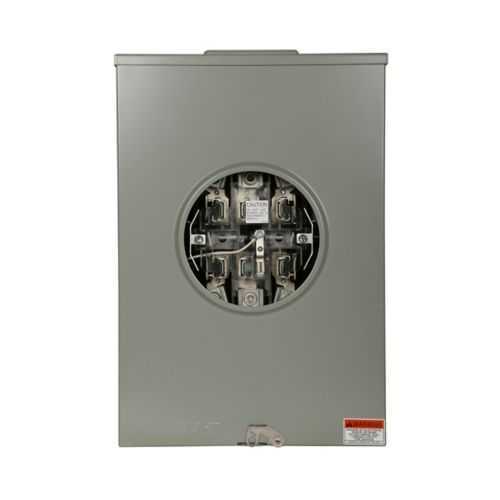

Eaton UTE7213UFLCH Meter Socket - UL Listed
Part Number: UTE7213UFLCH
Quick Summary
Eaton meter socket UTE7213UFLCH provides a reliable connection point for commercial electrical service. Installers face space constraints, complex wiring, and the need for quick maintenance during outages, and this unit is designed to simplify those realities. It carries UL Listed certification, plus MEG utility approvals in multiple states, supporting broader deployment and risk mitigation in regulated environments. The lever bypass and ringless construction reduce service downtime during maintenance while enabling safer, tamper-resistant operation. With a 600 V rating and 200 A capacity for three-phase loads, it handles large commercial feeders, while the 4-wire configuration and #6-350 kcmil load and line terms support flexible installation in diverse facilities.
Product Information
Extended Description
UTE7213UFLCH Eaton: Eaton meter socket, Comm, 200A, Over/under, 5x5 inch hub cover plate, #6-350 kcmil, 7-jaw, three-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex,4-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTE7213UFLCH
UPC
786685351292
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
13 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Commercial
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Seven-jaw
Phase
Three-phase
Utility approvals
FL : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) IN : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) KY : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) NC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) OH : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) SC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) FL : Tallahassee City Electric
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Four-wire
Hub type
5 x 5 hub cover plate
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTE7213UFLCH
Feature: 200 A rating with a 600 V three-phase, four-wire configuration. Business Impact: Supports high-demand commercial feeders while maintaining safety and code conformity. Application: Suitable for large commercial facilities, campuses, and multifamily developments seeking scalable metering. The Eaton UTE7213UFLCH enables efficient power distribution planning and reduces upgrade costs when expanding facility loads. Feature: Seven-jaw design with top/bottom feed. Business Impact: Improves wiring versatility and simplifies installation in limited spaces. Application: Retrofit projects and new constructions where space is at a premium and wiring layouts vary. Feature: Ringless construction with a lever bypass. Business Impact: Enhances security by reducing tamper opportunities and speeds maintenance with a quick bypass option. Application: Metering enclosures in regulated commercial sites and facilities requiring fast service restoration. Feature: 5 x 5 hub cover plate and compatible load/line terminations for #6-350 kcmil. Business Impact: Streamlines lugs installation, enables large conductor handling, and simplifies alignment in rugged environments. Application: Utility-ready service entrances and industrial/commercial deployments with large conductor needs. Feature: Ground connection specified as #14-#2 Cu, four-wire configuration. Business Impact: Ensures reliable grounding paths and safer fault-clearing performance, reducing risk during disturbances. Application: All three-phase commercial installations requiring robust grounding and fault tolerance. Feature: MEG and regional utility approvals plus UL Listed certification. Business Impact: Expedited permitting and broader deployment reach, lowering project risk. Application: Nationwide commercial and regulated facilities with multi-territory utility requirements.
Get a Quick Quote for a Eaton UTE7213UFLCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTE7213UFLCH?
Enquire Now
FAQs
The UTE7213UFLCH supports top or bottom feed with a four-wire configuration and seven jaws for robust connections. Typical installation involves mounting in a distribution panel, aligning #6-350 kcmil conductors for line and load, and securing the ground with #14-#2 Cu. The lever bypass enables quick maintenance, while the ringless design minimizes tampering risk. Ensure UL Listed compliance and local utility approvals before energizing the service.
Key specs include a 200A amperage rating, 600 V voltage rating, three-phase configuration, four-wire operation, seven-jaw design, top/bottom feed, and a 4-wire load path. It supports conductors in the #6-350 kcmil range and uses a 5x5 hub cover plate with a ringless interface, delivering a reliable, scalable solution for commercial metering.
Yes. The product carries UL Listed certification and is aligned with MEG utility approvals across multiple states, including Duke Energy and Florida Power, which supports deployment in regulated service territories. This reduces permitting friction and helps ensure compliant metering installations in diverse markets.
Lever bypass enables rapid service restoration by providing a straightforward disconnection path for maintenance without disturbing line connections. The 5x5 hub cover plate and ringless design simplify alignment and reduce tampering opportunities, while the 200 A, 600 V three-phase, four-wire configuration supports scalable, safe metering in commercial environments.
Warranty is defined by Eaton Selling Policy 25-000, offering one year from the date of installation or eighteen months from shipment, whichever occurs first. This coverage supports parts and workmanship while providing continuity for field service teams. For ongoing support, refer to Eaton's commercial metering program and regional service networks.
