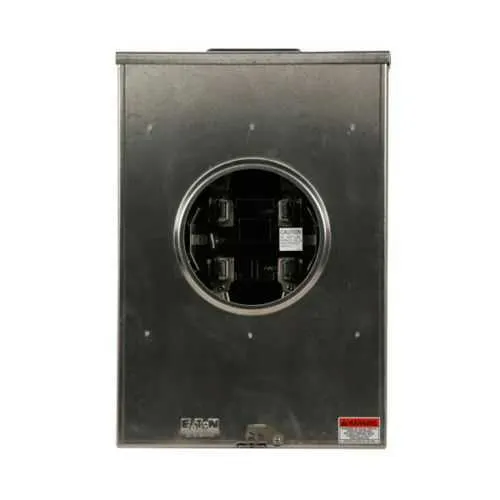

Eaton UTE7213ZCH Commercial Meter Socket - UL Listed
Part Number: UTE7213ZCH
Quick Summary
Electricians rely on the Eaton UTE7213ZCH meter socket for reliable three-phase 200A metering in commercial applications. Installing mismatched hubs or inadequate grounding creates reliability and safety risks in metering systems. UL Listed certification helps ensure code compliance, while ME Central Maine Power approval supports utility deployment. This solution integrates with common metering and power-distribution equipment, delivering installation flexibility and long-term operating value. In new-builds and retrofits, a ringless, lever-bypass socket reduces maintenance time and improves fault isolation. Designed for top or bottom feed and #6-350 kcmil conductors, it aligns with modern commercial power layouts and provides dependable service in demanding environments.
Product Information
Extended Description
UTE7213ZCH Eaton: Eaton meter socket, Comm, 200A, Over/under, Large to small hub adapter, #6-350 kcmil, 7-jaw, 3-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, four-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTE7213ZCH
UPC
786685351308
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
13 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Commercial
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Seven-jaw
Phase
Three-phase
Utility approvals
ME : Central Maine Power
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Four-wire
Hub type
Large to small hub adapter
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTE7213ZCH
Feature → 200 A rating with 600 V capability translates to headroom for typical commercial services, reducing the risk of overload and enabling safer, code-compliant installations. Business impact → Lower lifecycle costs through fewer service calls, improved fault tolerance, and streamlined procurement for commercial power-distribution projects. Application → Ideal for metering in offices, retail, small data centers, and light industrial facilities where reliability and up-front sizing matter. Feature → Three-phase, four-wire configuration supports modern electrical layouts and metering schemes. Business impact → Ensures accurate measurement across phases and simplifies panel design for utility-grade installations. Application → Compatible with quadruple-wire metering and triplex service arrangements in commercial buildings. Feature → Seven-jaw, large-to-small hub adapter, lever bypass, and ringless design. Business impact → Facilitates quick installation, secure conductor seating, and fast isolation during maintenance. Application → Useful in retrofit metering and new buildouts where hub compatibility varies. Feature → Top/bottom feed capability with #6-350 kcmil line and load conductors. Business impact → Maximizes wiring flexibility, reduces field splicing, and simplifies conduit routing. Application → Suitable for installations demanding versatile feed options and robust electrical connections. Feature → UL Listed and ME Central Maine Power approvals. Business impact → Improves regulatory confidence, accelerates procurement, and supports utility-compliant deployments. Application → Essential for regulated commercial and municipal projects seeking reliable metering hardware.
Get a Quick Quote for a Eaton UTE7213ZCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTE7213ZCH?
Enquire Now
FAQs
The UTE7213ZCH supports line and load conductors in the 6 through 350 kcmil range, with a large-to-small hub adapter. It is designed for top or bottom feed and a four-wire configuration, using seven jaws for a secure, versatile connection. This flexibility simplifies field wiring and reduces the need for extra adapters, saving time on installation and commissioning.
Key specs include 200 A amperage rating, 600 V voltage rating, three-phase operation, four-wire configuration, and seven-jaw sockets. The top/bottom feed capability and compatibility with #6-350 kcmil conductors support heavy-duty metering in commercial environments, while the ringless design improves reliability and ease of grounding during installation.
Yes. Its 200A, 600V three-phase, four-wire design, along with the ringless configuration and lever bypass, makes it well-suited for data centers and light industrial metering. The hub adapter and robust conductor range accommodate diverse wiring schemes, while UL Listed and utility approvals provide confidence for regulated deployments.
The UTE7213ZCH carries UL Listed certification, signaling compliance with recognized safety standards. It also has ME Central Maine Power approval, which supports utility-specific deployment. These certifications and approvals help streamline procurement and reduce compliance risk in regulated commercial projects.
Eaton’s warranty for this product follows policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. Regular inspection and torque checks on terminations are recommended during preventive maintenance. If grounding or insulation concerns arise, the lever bypass facilitates quick isolation for safe servicing.
