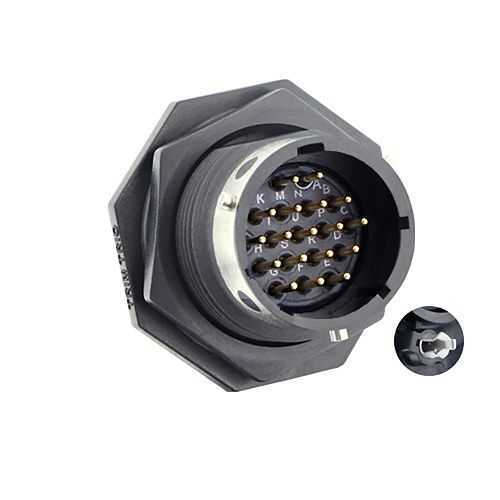

Eaton UTGX714D18PY32 Receptacle - IP68/69K Rugged
Part Number: UTGX714D18PY32
Quick Summary
The Eaton UTGX714D18PY32 rugged receptacle delivers reliable PCB connections for harsh environments in industrial machinery. Engineers often battle moisture ingress, corrosion, and vibration that drive downtime and field service costs. It carries IP68/69K sealing in unmated conditions, RoHS and REACH compliance, and UL94 V0 flame resistance, addressing core regulatory and safety requirements. As part of the Souriau UTGX series, this 18‑contact solution shortens assembly time, enhances field reliability, and supports long-term durability across automation lines, mobile equipment, and mining installations. Its jam nut receptacle design and dedicated hold‑down clips simplify panel mounting, even in tight spaces. This combination also supports quicker service and reduces overall lifecycle cost for manufacturing lines.
Product Information
Extended Description
UTGX714D18PY32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 18 male PCB contacts, IP68/69K in unmated conditions, keying Y; UTGX714D18PY32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D18PY32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
16 g
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Connector accessory option
No backshell possibility
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D18
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
Feature: Rugged shell with metal and plastic construction provides robust protection against mechanical shock and environmental exposure. Business Impact: Extends equipment life in outdoor and mobile automation environments while reducing repair frequency and maintenance costs. Application: Useful in mining equipment, outdoor process plants, and heavy-industry automation where weather and dust are constant concerns. Feature: IP68/69K sealing in unmated conditions ensures superior ingress protection during rugged operation. Business Impact: Decreases failure rates from dust and water ingress, improving mean time between failures (MTBF) and uptime. Application: Control panels and field assemblies in harsh climates, outdoor conveyors, and offshore or remote locations. Feature: Jam nut receptacle with hold-down clips enables secure mounting without a backshell. Business Impact: Simplifies installation, lowers labor time, and minimizes loose hardware risks. Application: Panel-mounted PCB assemblies in constrained spaces across automation and machinery. Feature: 18 PCB contacts with D18 layout delivers high-density, reliable signal routing. Business Impact: Increases channel count without expanding footprint, improving control capabilities and reducing cabinet size. Application: Complex I/O interfaces in PLCs and smart sensors where space is at a premium. Feature: 1/3 Bayonet coupling provides fast mating and robust vibration resistance. Business Impact: Quick field servicing and resilient connections under vibration, reducing downtime. Application: Mobile equipment, construction machines, and mining vehicles where frequent disconnects may be required. Feature: Operating temperature range -40 °C to 105 °C and 500 mating cycles deliver sustained performance. Business Impact: Ensures reliability across extreme conditions, supporting compliance and long-term ownership. Application: Harsh environments in automation lines, weather-exposed plants, and rugged transport systems.
