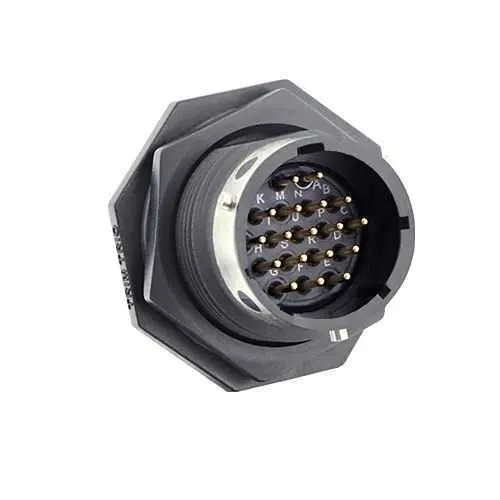

Eaton UTGX714D18PZ Receptacle - IP68/69K Ruggedized
Part Number: UTGX714D18PZ
Quick Summary
Eaton UTGX714D18PZ Receptacle is a ruggedized PCB-contact connector designed for harsh environments in industrial automation and heavy equipment. Engineers often struggle with ingress protection, vibration, and field-maintenance challenges when deploying connectors in demanding applications. It delivers IP68/69K sealing in unmated conditions, UL94 V0 flame rating, and RoHS/REACH compliance to meet stringent industry standards. With 18 PCB contacts, jam-nut mounting, and a compact 24.5 mm length, it reduces installation time and spare-part costs. Overall, the UTGX714D18PZ supports reliable connectivity in outdoor or harsh-industry environments while enabling cost-efficient maintenance programs.
Product Information
Extended Description
UTGX714D18PZ Eaton: Jam nut receptacle, without backshell, with 18 male PCB contacts, IP68/69K in unmated conditions, keying Z; UTGX714D18PZ
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D18PZ
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
16 g
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Connector accessory option
No backshell possibility
Connector orientation
Z
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D18
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
IP68/69K sealing and a rugged housing protect the contacts from dust, water ingress, and immersion, delivering higher uptime and lower maintenance costs for outdoor automation, mining, and heavy equipment. The 18 PCB contacts support dense interconnects while enabling dependable, field-ready PCB integration and simplified harness management in control panels. The 1/3 bayonet coupling offers secure mating and quick field servicing, reducing downtime during line changes and repairs in manufacturing environments. Jam-nut receptacle design with no backshell option simplifies panel mounting in compact enclosures, cutting installation weight and complexity for portable equipment and tight installations. Operating from -40 °C to 105 °C with up to 500 mating cycles ensures reliability across extreme temperatures and frequent connect/disconnect cycles in harsh sites. Salt spray resistance, RoHS/REACH compliance, and UL94 V0 ratings further support long-term durability and regulatory alignment for industrial and outdoor deployments.
Get a Quick Quote for a Eaton UTGX714D18PZ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714D18PZ?
Enquire Now
FAQs
The jam-nut receptacle design means there is no backshell option; ensure the panel cutout accommodates the jam nut and seal interfaces. Use appropriate sealing and mounting hardware to maintain IP68/69K protection during installation and service.
This connector provides 18 PCB contacts in a D18 layout with 1/3 Bayonet coupling. It measures 24.5 mm in depth and 30.2 mm in both height and width, weighs about 16 g, operates from -40 °C to 105 °C, and supports up to 500 mating cycles.
Yes. It features IP68/69K sealing in unmated condition, UL94 V0 flammability rating, and RoHS/REACH compliance, making it well-suited for outdoor automation, mining equipment, and harsh industrial installations.
Key attributes include IP68/IP69K sealing, UL94 V0 flammability, RoHS and REACH compliance, and a rugged metal & plastic shell designed for extreme environments.
The rugged sealing and high mating-cycle rating reduce unplanned downtime and maintenance costs, while the compact jam-nut mounting simplifies installation, lowering labor time and inventory complexity in harsh-site deployments.
