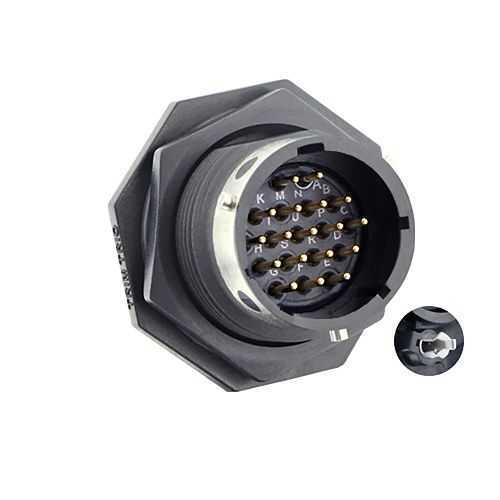

Eaton UTGX714D18PZ32 Receptacle - IP68/69K Rugged
Part Number: UTGX714D18PZ32
Quick Summary
UTGX714D18PZ32 ruggedized PCB receptacle by Eaton enables reliable, sealed connections for harsh industrial equipment. In tight spaces where washdowns and vibration threaten electrical integrity, installers benefit from a compact jam-nut design and robust sealing. The UTGX series delivers IP68/69K unmated protection, RoHS compliance, REACH substances control, and UL94 V0 flame resistance, helping you meet safety and environmental requirements. This combination reduces field maintenance and extends service intervals, while keeping footprints small and installation simple. By using this connector, design teams can optimize enclosure layouts and sourcing strategies with a single, verifiably rugged solution for critical PCB connections. The D18 layout and Z keying further enhance mating reliability in complex assemblies.
Product Information
Extended Description
UTGX714D18PZ32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 18 male PCB contacts, IP68/69K in unmated conditions, keying Z; UTGX714D18PZ32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D18PZ32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
16 g
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Connector accessory option
No backshell possibility
Connector orientation
Z
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D18
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
IP68/69K sealing provides exceptional ingress protection, dramatically reducing water and dust ingress in washdown and outdoor installations. This directly lowers field failure rates and maintenance costs, enabling longer run times for critical line equipment. In practice, you’ll see fewer unexpected outages on packaging lines and mining machinery where exposure to moisture and contaminants is constant. With 18 PCB contacts delivered in the D18 layout and loaded for quick assembly, UTGX714D18PZ32 simplifies PCB integration. The jam-nut receptacle plus hold-down clips provide secure mounting, while the 1/3 Bayonet coupling and Z orientation ensure reliable mating even in tight enclosures. The broad operating temperature range (-40 °C to 105 °C) supports equipment from cold starts to high-temperature processes, while salt-spray resistance of 500 hours underscores corrosion protection. The compact shell size 14, weight 16 g, and dimensions of 24.5 mm depth by 30.2 mm square fit space-constrained panels and robotics. Certified RoHS and REACH with UL94 V0 complement global safety and environmental requirements. It supports 18 cavities, offers up to 500 mating cycles, and ships without a backshell, reducing accessory cost and simplifying field repairs in OEM assemblies.
Get a Quick Quote for a Eaton UTGX714D18PZ32
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714D18PZ32?
Enquire Now
FAQs
UTGX714D18PZ32 is a jam-nut receptacle delivered with hold-down clips and no backshell. Plan for the Z orientation and D18 PCB layout to ensure correct mating. Confirm panel cutouts are sized for 24.5 mm depth and 30.2 mm width, and use the jam nut and clips to secure the connector against vibration. Ensure loaded contacts are seated before mating to avoid misalignment.
This connector excels in harsh environments such as outdoor automation, washdown areas, packaging lines, and rugged robotics where space is limited and reliability is critical. The 18 PCB contacts in a compact D18 layout, combined with IP68/69K sealing and a wide temperature range, supports durable PCB connections in challenging industrial settings.
IP68/69K sealing means superior protection against water and dust ingress, even under high-pressure washdowns. This reduces unplanned downtime, lowers cleaning-related wear, and extends service intervals. For automation panels and outdoor equipment, the rating translates to higher uptime and lower corrective maintenance costs.
The UTGX714D18PZ32 is RoHS and REACH compliant and features UL94 V0 flame rating, aligning with global safety and environmental requirements. While not all markets use the same certifications, this combination helps ensure regulatory compliance across many industrial sectors and regions.
With 500 mating cycles and robust corrosion resistance (500-hour salt spray), the UTGX714D18PZ32 offers extended service life and reduced maintenance. Its compact footprint and no-backshell design lower installation costs and spare parts inventory, while reliable mating under vibration minimizes downtime in high-cycle automation applications.
