Eaton UTGX714D18SX32 Receptacle - IP68/69K
Part Number: UTGX714D18SX32
Quick Summary
The Eaton UTGX714D18SX32 Receptacle provides rugged PCB connectivity for harsh environments in industrial machinery. Engineers often grapple with unreliable mating, ingress risk, and temperature swings that disrupt uptime and increase field service costs. It meets IP68/69K sealing in unmated conditions and carries REACH, RoHS, and UL94 V0 flame rating for safety and compliance. Designed for rugged automation applications, it supports 18 PCB contacts and a D18 layout within a compact metal and plastic shell, enabling reliable performance in tight spaces. As part of the Souriau UTGX series, it offers consistent mating and predictable service life, helping OEMs reduce downtime and procurement complexity while scaling automation.
Product Information
Extended Description

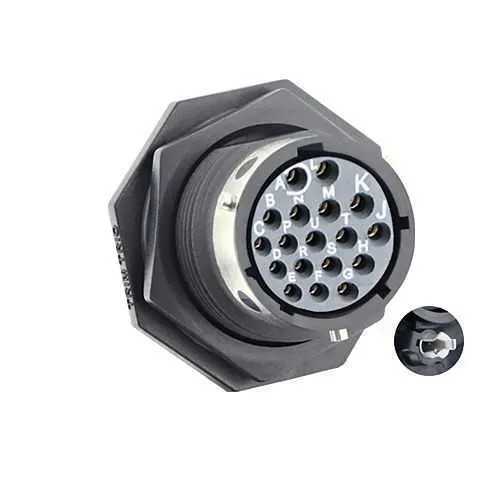

UTGX714D18SX32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 18 female PCB contacts, IP68/69K in unmated conditions, keying X; UTGX714D18SX32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D18SX32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector orientation
X
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D18
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
IP68/69K sealing and rugged construction protect critical PCB connections from water, dust, and washdown environments, reducing ingress-related field failures and extending component life in mining, offshore, and outdoor automation. This translates to higher uptime and lower maintenance costs as machines stay online longer. 1/3 bayonet coupling and jam nut receptacle design enable fast, secure mating without backshells, simplifying installation and reducing commissioning time in tight panels. 18 PCB contacts in a precise D18 layout deliver robust signal integrity with consistent contact pressure across cycles, supporting reliable performance in demanding lines. The 500 mating cycles specification and corrosion resistance from salt spray testing ensure predictable lifecycle performance in harsh factory floors, robotics cells, and material handling systems. The compact shell—metal and plastic, shell size 14, with a depth of 24.5 mm and a footprint of 30.2 x 30.2 mm—offers a lightweight yet sturdy solution for dense equipment housings. REACH, RoHS, UL94 V0 compliance provides regulatory assurance, reducing risk during design reviews and field deployment. The no backshell option simplifies integration in panels where space and routing are at a premium, while compatibility with the UTGX family ensures scalable, modular installations across multiple platforms.
Get a Quick Quote for a Eaton UTGX714D18SX32
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714D18SX32?
Enquire Now
FAQs
UTGX714D18SX32 is a jam nut receptacle in the UTGX family with a D18 layout and 18 PCB contacts designed for the Souriau ecosystem. It uses a 1/3 bayonet coupling, orientation X, and a 24.5 mm depth with a 30.2 mm square envelope. It is compatible with UTGX accessories while featuring no backshell option, so plan for integrated strain relief or panel protection in the installation.
The receptacle provides IP68/69K sealing in unmated conditions, offering strong protection against water and dust ingress. It is REACH and RoHS compliant and has a UL94 V0 flammability rating. Salt spray resistance is specified at 500 hours, and the operating temperature range is -40 °C to 105 °C, supporting demanding industrial environments.
Installers should secure the jam nut receptacle directly to a panel or enclosure opening, noting there is no backshell option. Ensure proper panel cutout and alignment for the D18 layout, with 18 PCB contacts routed to the board. Use the X keying orientation to prevent mis-mating, and accommodate the 24.5 mm depth in the panel design for reliable seating and sealing.
This UTGX series receptacle excels in harsh industrial environments such as manufacturing automation, mining equipment, offshore machinery, and washdown-heavy facilities. Its IP68/69K sealing, 18 PCB contacts, and robust mechanical design support reliable operation in vibration-heavy, temperature-extreme, and corrosive settings, making it suitable for both new designs and retrofits in challenging environments.
With up to 500 mating cycles and strong environmental protection, this connector reduces field maintenance and unplanned downtime. The IP68/69K sealing lowers ingress-related failures, while RoHS/REACH compliance simplifies regulatory reviews. The compact form factor and 18-contact capacity enable scalable designs, potentially reducing part numbers and inventory while extending service intervals and overall equipment effectiveness.
