Eaton UTGX714D18SY32 Receptacle - IP68/69K ruggedized
Part Number: UTGX714D18SY32
Quick Summary
Eaton UTGX714D18SY32 ruggedized receptacle connectors deliver robust PCB connectivity for harsh environments. In many automation projects, ingress, vibration, and constrained panel space challenge reliable wiring. The design achieves IP68/69K sealing and RoHS/REACH compliance with UL94 V0 ratings, giving engineers confidence in safety and longevity. The combination of jam-nut mounting, 18 PCB contacts, and a 1/3 Bayonet coupling reduces installation time while enhancing reliability. For factory automation, outdoor equipment, and heavy machinery, this connector helps lower maintenance costs, extend service life, and boost overall system uptime. Operating from -40 °C to 105 °C and offering salt spray resistance, UTGX714D18SY32 is a trusted choice for extreme climate installations.
Product Information
Extended Description

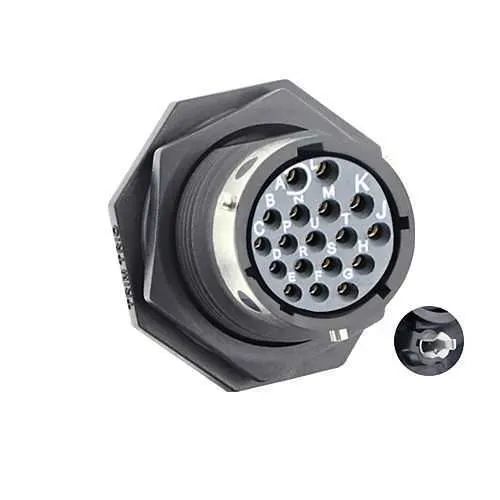

UTGX714D18SY32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 18 female PCB contacts, IP68/69K in unmated conditions, keying Y; UTGX714D18SY32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D18SY32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Connector accessory option
No backshell possibility
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D18
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
Feature: 18 PCB contacts in a D18 layout with jam nut receptacle and no backshell option. Business impact: simplifies PCB integration and mounting, reduces installation steps, and lowers total cost of ownership by minimizing wiring errors. Application: compact panels in factory automation and rugged machinery where space is limited but reliability is critical. Feature: 1/3 Bayonet coupling with Y-keying delivers fast, secure mating while resisting vibration. Business impact: decreases downtime during deployment and service cycles, improving throughput in automated lines. Application: high-vibration environments such as conveyors and mining equipment. Feature: IP68/69K sealing in unmated conditions plus salt spray resistance. Business impact: superior ingress protection for outdoor or washdown environments, extending service life and reducing maintenance. Application: outdoor equipment, agricultural machinery, and offshore automation. Feature: RoHS, REACH, and UL94 V0 compliance with a 500 mating cycle rating. Business impact: regulatory confidence and predictable lifecycle costs, enabling longer intervals between replacements. Application: regulated industrial environments requiring durable connectors with documented performance. Feature: 18-contact, shell size 14 construction with metal & plastic shell and 24.5 mm depth, 30.2 mm width. Business impact: compact footprint with robust structural integrity, enabling compact cabinet designs and easier installation. Application: dense control panels and aerospace ground-support equipment where reliability matters.
