Eaton UTGX714D19PW32 Receptacle - IP68/69K ruggedized
Part Number: UTGX714D19PW32
Quick Summary
UTGX714D19PW32 ruggedized connector is a PCB-mount receptacle designed for harsh environments in industrial automation. Engineers frequently contend with moisture ingress, vibration, and field failures; this receptacle mitigates risk with IP68/69K sealing and a 500-mating-cycle life. It carries UL94 V0 flammability, RoHS and REACH compliance to meet stringent safety and sustainability standards. With the jam-nut design and 19 PCB contacts, it enables compact, reliable panel assemblies while reducing accessory costs and inventory complexity.
Product Information
Extended Description

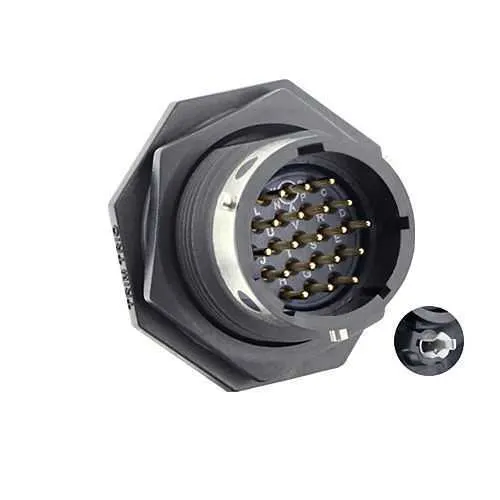

UTGX714D19PW32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 19 male PCB contacts, IP68/69K in unmated conditions, keying W; UTGX714D19PW32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D19PW32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
16 g
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Connector accessory option
No backshell possibility
Connector orientation
W
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D19
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature: IP68/69K sealing and rugged shell protect against washdowns and dust, reducing unplanned downtime. Business Impact: higher equipment availability and lower maintenance costs. Application: harsh industrial environments such as outdoor control panels and food processing facilities. Feature: 19-pin PCB contact layout in an efficient D19 footprint with jam-nut receptacle design. Business Impact: simplified PCB mounting and reduced enclosure space, lowering assembly time and BOM complexity. Application: control panels and power distribution units where space is at a premium. Feature: 1/3 Bayonet coupling and loaded contact delivery with no backshell option. Business Impact: faster mating, secure connections, and easier field servicing, lowering installation tools and time. Application: high-vibration machinery and mobile equipment in manufacturing and transport. Feature: wide operating temperature range and regulatory compliance. Business Impact: reliable performance across cold starts and hot running cycles, minimizing risk of failure during start-up and operation. Application: process plants, rail, and automotive assembly lines. Feature: lightweight metal and plastic shell, 14 shell size, and 19 contacts. Business Impact: compact, durable connectors that reduce panel footprint and inventory without sacrificing performance. Application: modular machines and rugged automation systems. Industry context: the UTGX series supports consistent compatibility with Souriau UTGX accessories, helping maintain standardization across platforms.
Get a Quick Quote for a Eaton UTGX714D19PW32
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714D19PW32?
Enquire Now
FAQs
For installation, mount the jam-nut receptacle using the W orientation as specified, align the 19 PCB contacts with the board, and secure with hold-down clips. Ensure the mating pair remains IP68/69K sealed in both unmated and mated states as required by the application, and verify proper seating to avoid intermittent contacts.
The 1/3 Bayonet coupling provides a secure, tool-free mating action that resists loosening under vibration. The robust jam-nut receptacle design combined with 19 PCB contacts delivers reliable electrical performance across up to 500 mating cycles, supporting long-term operation in machinery and transport applications.
Yes, the UTGX714D19PW32 is part of the Souriau UTGX series designed for compatibility with UTGX accessories and mounting interfaces. Note that this variant has no backshell option, which simplifies inventory but requires careful enclosure design to meet IP ratings.
The connector complies with UL94 V0 flammability ratings and is RoHS and REACH compliant. These certifications ensure safer flame resistance, reduced hazardous substances, and regulatory compliance in many industries, including automotive, medical, and industrial manufacturing.
ROI is driven by reduced maintenance, longer service life, and lower field failure rates due to IP68/69K sealing and 500 mating cycles. The compact D19 layout, lightweight shell, and lack of backshell simplify installation and spare parts management, delivering lower lifecycle costs in rugged automation environments.
