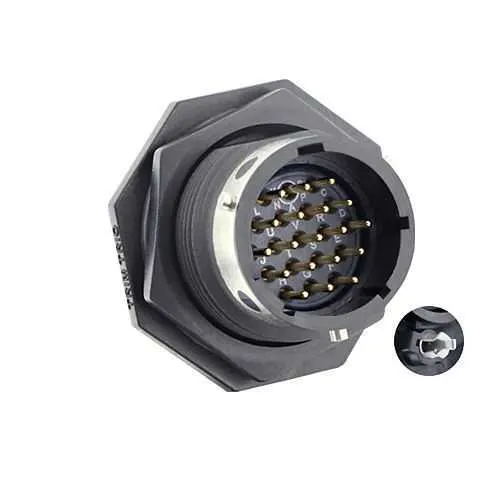

Eaton UTGX714D19PX32 Receptacle - IP68/69K Rugged Connector
Part Number: UTGX714D19PX32
Quick Summary
UTGX714D19PX32 is a ruggedized receptacle connector designed for harsh industrial environments. Engineers often struggle with ingress, vibration, and challenging washdowns that threaten connection integrity; this jam nut receptacle with PCB contacts delivers robust sealing and repeatable mating in demanding applications. It meets IP68/69K unmated protection, UL94 V0 flammability, and RoHS/REACH compliance, providing reliable performance in regulated markets. Its compact footprint—24.5 mm long, 30.2 mm wide, and just 16 g—helps maximize panel space while enabling easy installation and long lifecycle across automation equipment and harsh environments.
Product Information
Extended Description
UTGX714D19PX32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 19 male PCB contacts, IP68/69K in unmated conditions, keying X; UTGX714D19PX32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D19PX32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
16 g
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Connector accessory option
No backshell possibility
Connector orientation
X
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D19
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature: IP68/69K unmated protection ensures ingress protection in harsh environments. Benefit: Reduces the risk of dust, water, and washdown damage, extending service life in outdoor or wet factory settings. Application: Suitable for heavy-duty machines and outdoor equipment where reliability is critical. Feature: Jam Nut Receptacle with 19 PCB contacts and 1/3 Bayonet coupling. Benefit: Quick, secure mating with precise alignment and reduced maintenance downtime. Application: Panel-mounted controls and sensors that require fast field servicing. Feature: Mating cycles rated at 500. Benefit: Prolonged connector life lowers replacement costs and downtime in high-cycle applications. Application: Robotic cells and production lines with frequent plug/unplug cycles. Feature: Operating temperature range of -40 °C to 105 °C. Benefit: Maintains performance in extreme locations and temperature swings. Application: Cold rooms, outdoor enclosures, and mobile machinery. Feature: Salt spray resistance for 500 hours. Benefit: Enhanced corrosion resistance for coastal or humid environments. Application: Marine or offshore equipment and equipment near process fluids. Feature: UL94 V0, RoHS, and REACH compliance. Benefit: Streamlined regulatory approval and safer, environmentally responsible design. Application: Industries with strict material safety and environmental requirements. Feature: No backshell option and X orientation. Benefit: Compact footprint and simplified installation in tight spaces. Application: Space-constrained panels where backshells are impractical.
Get a Quick Quote for a Eaton UTGX714D19PX32
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714D19PX32?
Enquire Now
FAQs
For tight panels, plan for its jam nut receptacle mounting and the X orientation to ensure correct alignment with the mating half. The 24.5 mm length and 30.2 mm width keep the footprint compact, while the 19 PCB contacts simplify routing. Ensure enclosure seals accommodate IP68/69K requirements and verify panel cutouts match the D19 layout.
Key specs include 19 contacts in D19 layout, 1/3 Bayonet coupling for quick mating, and a mating life of up to 500 cycles. The connector is IP68/69K in unmated conditions, operates from -40 °C to 105 °C, and complies with UL94 V0, RoHS, and REACH, ensuring reliable electrical performance in harsh environments.
Yes. The IP68/69K rating in unmated conditions provides robust ingress protection in washdowns, rain, and outdoor exposure. Salt spray endurance of 500 hours adds corrosion resistance, while RoHS and REACH compliance support safe use in regulated outdoor and marine-adjacent facilities.
This connector is UL94 V0 flame rated, RoHS compliant, and REACH compliant, ensuring flame resistance, restricted material content, and restricted substances in line with many international standards. These certifications support market access, safer products, and easier regulatory approval for industrial automation projects.
With 500 mating cycles and robust IP68/69K sealing, maintenance intervals are extended and downtime is minimized in high-cycle or washdown environments. Reduced failures from ingress, plus reliable PCB contact performance, translates to lower replacement costs and faster service in automated plants, delivering favorable total cost of ownership.
