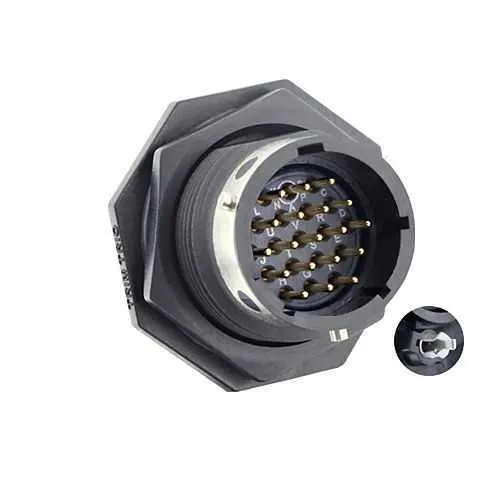

Eaton UTGX714D19PY32 Receptacle - IP68/69K Connector
Part Number: UTGX714D19PY32
Quick Summary
Eaton UTGX714D19PY32 ruggedized connector provides reliable PCB mating in harsh environments for demanding industrial applications. Engineers often face moisture ingress, corrosion, and unreliable connections that cause costly downtime. It carries IP68/69K ratings for unmated conditions and UL94 V0 flammability with RoHS/REACH compliance, helping meet stringent safety and environmental standards. Compatible with the Souriau UTGX family and featuring jam nut receptacle and 19 PCB contacts, it enables quick field upgrades and long-term reliability. By supporting a 1/3 bayonet coupling and a compact 24.5 mm depth, it simplifies panel integration, reduces installation time, and lowers total cost of ownership. This combination of rugged durability and serviceability addresses the critical needs of OEMs and end users in harsh environments.
Product Information
Extended Description
UTGX714D19PY32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 19 male PCB contacts, IP68/69K in unmated conditions, keying Y; UTGX714D19PY32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D19PY32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
16 g
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Connector accessory option
No backshell possibility
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D19
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
IP68/69K protection in unmated conditions reduces ingress risk and service downtime, delivering higher equipment uptime and lower warranty costs in washdown or dusty environments. The jam nut receptacle with no backshell option provides a compact, secure mounting solution that simplifies field service and minimizes misalignment during reassembly, boosting installation reliability in tight panels. With 19 PCB contacts in a D19 layout, and a 24.5 mm depth, engineers gain a dense, compact interface that supports robust signal integrity while maintaining ease of routing and cable management in cramped cabinets. The 1/3 bayonet coupling offers quick mating/demating cycles, reducing assembly time on production lines and enabling faster maintenance without sacrificing connection reliability. Operating from -40 to 105 °C and rated for 500 mating cycles, the UTGX714D19PY32 is built to withstand extreme industrial conditions, including salt spray exposure, while complying with RoHS, REACH, and UL94 V0 standards. Designed for compatibility with the Souriau UTGX series, it supports straightforward panel installation and scalable system integration, helping OEMs manage lifecycle cost and upgrade planning with confidence.
