Eaton UTGX714D19S Receptacle - IP68/69K Rugged Connector
Part Number: UTGX714D19S
Quick Summary
Eaton Souriau UTGX ruggedized receptacle connectors deliver a robust PCB interface for harsh environments. Engineers often grapple with moisture ingress, vibration, and space constraints that disrupt deployments. This UTGX family provides IP68/69K sealing in unmated conditions, UL94 V0 flammability, and RoHS/REACH compliance, with a durable 500 mating cycle life. The jam-nut receptacle design with a compact D19 layout enables straightforward installation in tight enclosures, reducing field rework and warranty costs. For automation, mobile machinery, and outdoor equipment, these connectors offer reliable performance, easy sourcing, and a clear path to scalable, long‑term savings.
Product Information
Extended Description

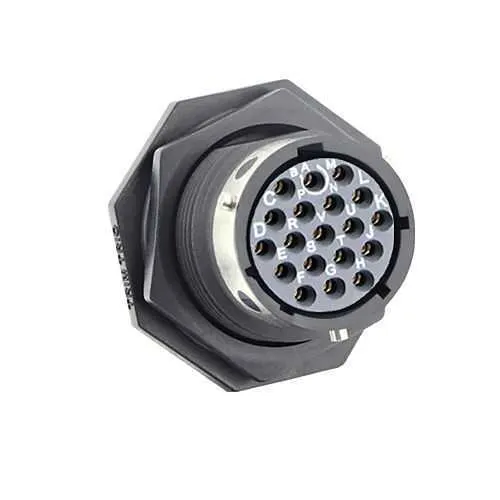

UTGX714D19S Eaton: Jam nut receptacle, without backshell, with 19 female PCB contacts, IP68/69K in unmated conditions; UTGX714D19S
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D19S
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D19
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
The UTGX714D19S jam-nut receptacle features a 19-contact PCB configuration within a compact D19 shell, delivering a dense and reliable interface for high-end automation PCBs. This combination translates into space savings on control panels and lower harness complexity, which in turn reduces assembly time and integration risk in robotic cells and machine interfaces. With 1/3 bayonet coupling, mating is quick and vibration resistant, supporting fast field maintenance and minimizing downtime in demanding environments. The rugged metal and plastic shell is designed for harsh environments, providing robust EMI shielding and mechanical protection in automotive, off-road, and industrial applications. Operating from -40 to 105 °C ensures dependable performance across outdoor, temperatures swings, and high-heat processes, while the IP68/69K sealing keeps moisture and contaminants out during washdowns or wash-down cycles. The 500 mating cycles life reduces replacement costs and supports long equipment lifecycles in production lines, vehicles, and heavy equipment. Salt spray testing for 500 hours demonstrates corrosion resistance, helping maintain reliability in coastal or chemically challenging environments. The product ships loaded with contacts, ensuring immediate readiness for PCB installation, and the jam-nut mounting with no backshell simplifies mounting in tight panels. Overall, UTGX714D19S brings robust, field-proven performance to rugged automation and industrial environments through proven standards, simplified installation, and predictable lifecycle economics.
