Eaton UTGX714D19SW32 Receptacle - IP68/69K Ruggedized
Part Number: UTGX714D19SW32
Quick Summary
Eaton Souriau UTGX714D19SW32 ruggedized connector receptacle delivers reliable power and signal in harsh environments. Engineers in heavy machinery and off-road equipment often struggle with sealing, vibration resistance, and field maintenance, which this design helps reduce. It achieves IP68/69K in unmated conditions and complies with RoHS and REACH, with UL94 V0 flammability for safety. The jam nut receptacle uses a 1/3 bayonet coupling, keying W, and holds 19 PCB contacts for compact, quick-mating installations. For OEMs and integrators, this means reduced downtime, simplified installation, and predictable performance across temperatures from -40 to 105 C.
Product Information
Extended Description

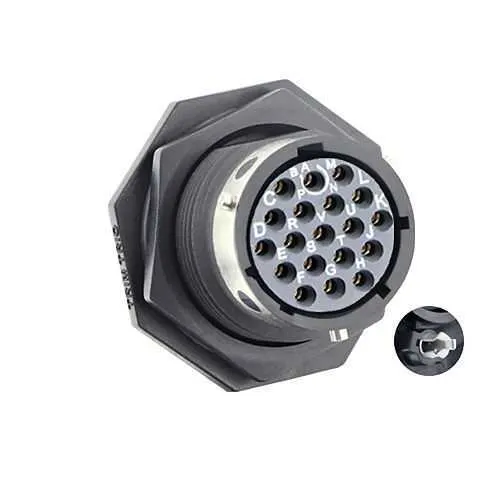

UTGX714D19SW32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 19 female PCB contacts, IP68/69K in unmated conditions, keying W; UTGX714D19SW32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D19SW32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector orientation
W
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D19
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature: IP68/69K protection in unmated conditions provides exceptional ingress protection during wash-downs, rain exposure, and dusty environments. Business Impact: reduces field failure rates and maintenance costs, improving system uptime. Application: autonomous vehicles, mining equipment, and construction machinery benefit from fewer seal failures. Paragraph two highlights a robust jam nut receptacle design with hold-down clips and no backshell option, delivering a secure, vibration-resistant connection without extra hardware. This translates to faster field servicing and lower total cost of ownership in harsh environments. Feature: 19 PCB contacts in a compact D19 layout with a 24.5 mm depth and 30.2 mm width enables dense circuitry while preserving signal integrity. Business Impact: efficient cable routing, simplified panel design, and lower install time. Application: industrial automation panels and mobile machinery where space is at a premium. Paragraph four notes the 1/3 Bayonet coupling and W-keying deliver reliable mating cycles up to 500 cycles, improving maintenance predictability. Application: equipment that undergoes frequent connector engagement and disconnection. Paragraph five covers operating temperature from -40 °C to 105 °C and salt spray resistance for extended life in outdoor or corrosive environments, reducing replacement costs and improving lifecycle performance. Paragraph six emphasizes the Metal & Plastic shell, Shell size 14, and loaded contact delivery, which simplify installation and ensure consistent electrical contact under vibration. This product also carries RoHS and REACH compliance plus UL94 V0 rating, reinforcing regulatory alignment for modern factories and safety audits.
