Eaton UTGX714D19SX Receptacle - Rugged IP68/69K
Part Number: UTGX714D19SX
Quick Summary
The Eaton UTGX714D19SX rugged receptacle provides reliable PCB contact connectivity for harsh-environment automation and equipment. OEMs often struggle to maintain performance under vibration, dust ingress, and extreme temperature cycling, which can drive failures and costly downtime. The UTGX714D19SX delivers IP68/69K sealing in unmated conditions, RoHS and REACH compliance, and UL94 V0 flame resistance, aligning with stringent industrial safety and environmental requirements. As part of the Souriau UTGX ruggedized connector family, it supports harsh-duty installations across robotics, machinery, and outdoor equipment. Its compact footprint—24.5 mm deep by 30.2 mm wide with 19 PCB contacts—simplifies panel design, accelerates assembly, and helps reduce total cost of ownership over the product lifecycle.
Product Information
Extended Description

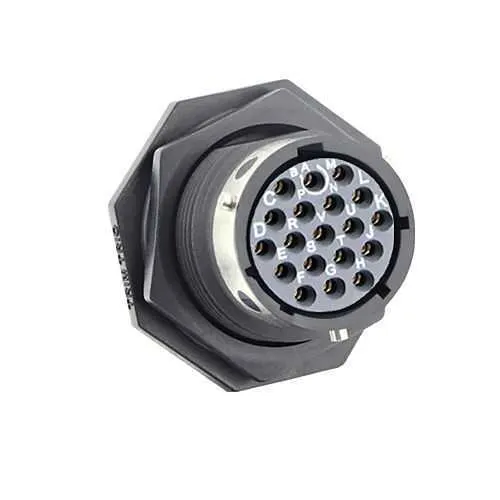

UTGX714D19SX Eaton: Jam nut receptacle, without backshell, with 19 female PCB contacts, IP68/69K in unmated conditions, keying X; UTGX714D19SX
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D19SX
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Connector accessory option
No backshell possibility
Connector orientation
X
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D19
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature: 19 PCB contacts in a D19 layout inside a jam-nut receptacle. Business impact: enables dense wiring and robust solderless terminations, lowering panel depth and reducing wiring errors in tight environments. Application: control panels, compact robotics, and machine housings where space is at a premium. Feature: IP68/69K sealing in unmated conditions. Business impact: protects signal integrity against water, dust, and wash-down cycles, enhancing reliability in harsh environments. Application: outdoor machinery, food and beverage processing, and industrial equipment exposed to moisture. Feature: 1/3 Bayonet coupling. Business impact: delivers quick mating with repeatable performance under vibration, cutting installation and maintenance time. Application: high-vibration machinery, conveyors, and mobile equipment. Feature: Operating temperature range -40 to 105 °C. Business impact: maintains electrical performance across extreme climates, reducing field failures and warranty costs. Application: oil and gas, automation in unconditioned spaces, and outdoor installations. Feature: RoHS and REACH compliance with UL94 V0 rating. Business impact: simplifies procurement, audits, and safety compliance. Application: global deployments requiring environmental and fire-safety standards. Feature: No backshell option; shell material metal & plastic; shell size 14. Business impact: minimizes accessory requirements, reduces weight (18 g), and streamlines installation in tight panels. Application: compact enclosures and retrofit projects with limited space. Feature: Mating cycles rated at 500. Business impact: confirms long-term reliability and predictable service intervals, lowering downtime. Application: continuous-operation factories, automated lines, and high-throughput equipment.
