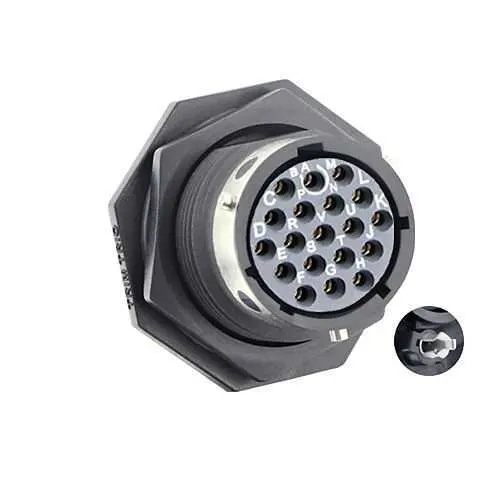

Eaton UTGX714D19SX32 Ruggedized Receptacle - IP68/69K
Part Number: UTGX714D19SX32
Quick Summary
UTGX714D19SX32 ruggedized PCB receptacle provides reliable PCB connections for harsh industrial environments. Engineers often battle vibration, contaminants, and downtime; this connector delivers sealing and robust mounting. It features IP68/69K protection in unmated conditions, UL94 V0 flammability, and RoHS/REACH compliance for regulated environments. With 19 PCB contacts and a jam nut receptacle, it enables compact, secure mounting for back-shellless installations and reduces maintenance costs. Designed around a D19 layout with a 1/3 bayonet coupling, it offers quick mating and dependable signal integrity in rugged machinery, outdoor equipment, and process automation—the kind of reliability that keeps production lines up and running.
Product Information
Extended Description
UTGX714D19SX32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 19 female PCB contacts, IP68/69K in unmated conditions, keying X; UTGX714D19SX32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D19SX32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Connector accessory option
No backshell possibility
Connector orientation
X
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D19
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature → IP68/69K sealing in unmated conditions, UL94 V0 flammability rating, and RoHS/REACH compliance. Business impact → Reduces field failures from water, dust, and chemical exposure and simplifies regulatory compliance. Application → Suitable for outdoor equipment, washdown environments, and rugged automation deployments. Feature → Jam nut receptacle with hold-down clips and 19 PCB contacts in a D19 layout. Business impact → Ensures secure mounting and reliable signal integrity even under vibration, lowering rework. Application → Control panels, machine hoods, and industrial cabinets with tight mounting requirements. Feature → 1/3 Bayonet coupling with X orientation. Business impact → Fast, repeatable mating with strong vibration resistance, reducing maintenance time. Application → High‑vibration machinery, robotics controllers, and field-installed assemblies. Feature → Operating temperature range from -40 °C to 105 °C. Business impact → Broadens usable environments without performance loss, improving uptime in extreme climates. Application → Industrial plants, outdoor equipment, and automotive manufacturing lines. Feature → Mating cycles rated at 500. Business impact → Longer lifecycle and predictable maintenance planning, lowering total cost of ownership. Application → Continuous production lines and retrofit projects demanding durable connecters. Feature → No backshell option. Business impact → Simpler installation with reduced weight and fewer parts to onboard, speeding up deployment. Application → Back-shellless assemblies and compact enclosures in harsh environments.
