Eaton UTGX714D19SY32 Receptacle - Harsh Env IP68/69K
Part Number: UTGX714D19SY32
Quick Summary
Eaton UTGX714D19SY32 is a rugged receptacle connector for harsh environments used in industrial automation. Engineers often struggle with sealing, vibration, and limited maintenance access in confined installations. This solution addresses those challenges by delivering IP68/69K protection, RoHS and REACH compliance, and UL94 V0 flame resistance, enabling safe, compliant operation in dirty or damp conditions. The compact 24.5 mm depth and 30.2 mm square footprint support tight panel layouts, while the jam nut receptacle design with hold-down clips simplifies mounting and reduces vibration-induced wear. With 19 PCB contacts in a D19 layout and 500 mating cycles, it offers reliable long-term performance for high-mix, high-duty applications, improving uptime and lifecycle costs for OEMs and integrators.
Product Information
Extended Description

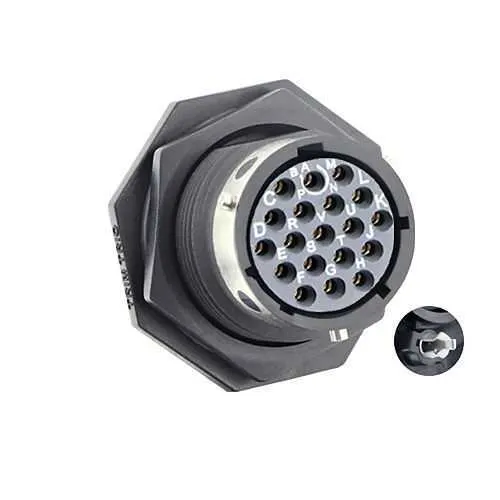

UTGX714D19SY32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 19 female PCB contacts, IP68/69K in unmated conditions, keying Y; UTGX714D19SY32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D19SY32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Connector accessory option
No backshell possibility
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D19
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Rugged shell design combines metal and plastic to resist corrosion and impact, extending service life in vibration-heavy environments, which translates to lower maintenance costs and less unplanned downtime for conveyors and packaging lines. The IP68/69K rating in unmated conditions ensures dependable ingress protection during harsh washdowns and dusty conditions, improving equipment reliability in outdoor or dirty facilities and reducing field service trips. Jam nut receptacle with hold-down clips enables rapid, vibration-resistant mounting without backshells, simplifying installation in compact panels and minimizing hardware inventory. The 19 PCB contacts arranged in a D19 layout provides a reliable, space-efficient PCB connection, lowering assembly risk and enabling straightforward replacement in legacy control interfaces. A 1/3 bayonet coupling delivers secure mating with facile, tool-free engagement, supporting faster field servicing. Operating from -40 °C to 105 °C, with 500 mating cycles and salt spray resistance, this connector meets demanding industrial environments while ensuring predictable performance. The metal/plastic shell, RoHS and REACH compliance, and UL94 V0 rating reinforce safety, environmental responsibility, and regulatory conformity, making it a solid choice for machine builders seeking long-term cost-of-ownership reductions. Overall, UTGX714D19SY32 aligns with rugged automation needs, delivering compatibility, robust protection, and predictable lifecycle costs for OEMs deploying in harsh or remote locations.
Get a Quick Quote for a Eaton UTGX714D19SY32
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714D19SY32?
Enquire Now
FAQs
With no backshell option, installation relies on the jam nut receptacle mounting method and hold-down clips to secure the connector. This simplifies panel integration in tight spaces and reduces ballast hardware. Verify panel cutout dimensions match the 24.5 mm depth and 30.2 mm width/height footprint, and ensure adequate gasketing to maintain IP68/69K integrity in unmated conditions.
The UTGX714D19SY32 supports up to 500 mating cycles, ensuring dependable lifecycle performance in repetitive connection/disconnection scenarios. It operates from -40 °C to 105 °C, accommodating extreme ambient conditions common in industrial automation and outdoor equipment while maintaining electrical and mechanical integrity.
This receptacle provides 19 PCB contacts in a D19 layout, designed for compact board-to-cable connections. The 19-female (socket) contacts are pre-loaded for ready mating, and the jam nut configuration supports robust mounting to PCBs and panels, delivering reliable electrical performance even in vibration-prone environments.
The UTGX714D19SY32 implements RoHS and REACH compliance and carries a UL94 V0 flammability rating, aligning with global safety and environmental standards. Its IP68/69K rating provides high ingress protection in unmated conditions, making it suitable for harsh, wash-down environments typical in manufacturing and automation.
By reducing maintenance downtime through robust sealing and vibration resistance, and by offering long mating life (500 cycles) in demanding environments, the UTGX714D19SY32 lowers field-service costs and extends panel lifecycles. Its compact, backshell-free design also reduces installation time and inventory, improving overall equipment availability and total cost of ownership for OEMs and integrators.
