Eaton UTGX714D5P32 Receptacle Series - IP68/69K
Part Number: UTGX714D5P32
Quick Summary
UTGX714D5P32 is part of the Eaton Souriau UTGX ruggedized family and provides reliable PCB connections for harsh industrial environments. End users often contend with connectors that fail under vibration, moisture, or dust, causing unplanned downtime and costly repairs. These solutions deliver IP68/69K sealing, RoHS and REACH compliance, and UL94 V0 flame rating, helping maintain safety and regulatory adherence. The compact 24.5 mm by 30.2 mm footprint and 5-pin PCB configuration support streamlined panel layouts while preserving performance for automation, machine tools, and outdoor equipment.
Product Information
Extended Description

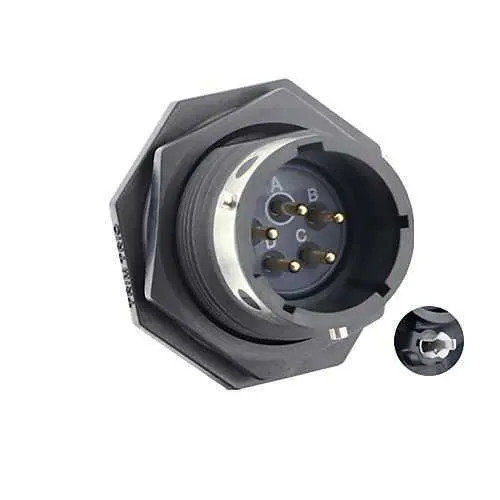

UTGX714D5P32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 5 male PCB contacts, IP68/69K in unmated conditions; UTGX714D5P32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D5P32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D5
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature → Business Impact → Application: The jam nut receptacle design simplifies mounting, reduces installation time, and improves vibration resistance, delivering a lower total cost of ownership for panel assemblies used in robotic cells and packaging lines. Feature → Business Impact → Application: IP68/69K sealing in unmated conditions ensures robust ingress protection against dust and water, boosting uptime in outdoor control cabinets and mobile equipment. Feature → Business Impact → Application: Five PCB contacts in a compact package enable dense control circuitry without sacrificing signal integrity, ideal for compact PLC I/O interfaces in heavy machinery. Feature → Business Impact → Application: 1/3 bayonet coupling provides quick, secure mating with repeatable alignment, improving field service efficiency in harsh environments. Feature → Business Impact → Application: Salt spray resistance and -40 to 105 °C operating range support long-term reliability in coastal or high-temperature facilities, reducing maintenance costs for offshore or foundry applications. Feature → Business Impact → Application: 500 mating cycles and a robust shell (metal & plastic) deliver durable performance in automation panels, conveyors, and heavy equipment where rugged connectors are a must.
