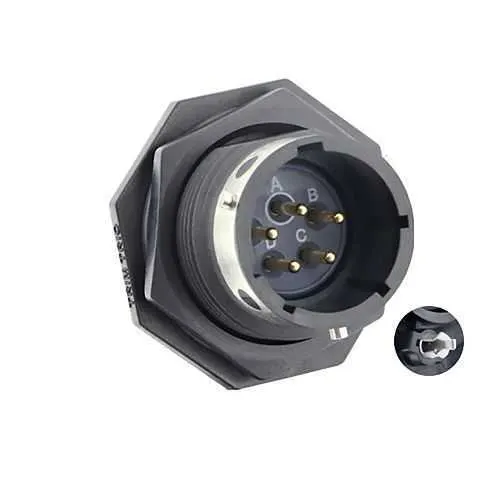

Eaton UTGX714D5PW32 Receptacle - IP68/69K Rugged
Part Number: UTGX714D5PW32
Quick Summary
Eaton UTGX714D5PW32 Receptacle provides rugged PCB connectivity for harsh-environment industrial equipment and automation panels. Engineers often face ingress, moisture, and corrosion-driven downtime; this connector is designed to minimize those risks with sealed performance and durable contacts. Key certifications include UL94 V0 flame rating, RoHS and REACH compliance, and IP68/69K ingress protection in unmated conditions, supporting safe, long-term installations. The combination of 5 PCB contacts, jam nut receptacle, and a 1/3 bayonet coupling delivers reliable, easy-to-install connectivity in demanding environments. By integrating with Souriau UTGX series, you gain robust performance, improved panel density, and reduced maintenance, all while meeting strict industry requirements for control cabinets and rugged machinery.
Product Information
Extended Description
UTGX714D5PW32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 5 male PCB contacts, IP68/69K in unmated conditions, keying W; UTGX714D5PW32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D5PW32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Connector accessory option
No backshell possibility
Connector orientation
W
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D5
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K sealing in unmated conditions significantly reduces ingress risk, extending component life in washdown and dusty environments. This translates to lower maintenance costs and higher equipment uptime on manufacturing lines and outdoor machinery. Feature → 5 PCB contacts enables compact, high-density layouts, reducing panel footprint and wiring complexity in control cabinets and robotics. Application: automation panels where space is at a premium. Feature → 1/3 Bayonet coupling provides quick mating/demating, slashing installation time during service or field upgrades. Application: field service, mobile equipment, and mobile robotics where rapid connector swaps are valuable. Feature → Jam Nut Receptacle with no backshell option simplifies mounting and minimizes accessory inventory, cutting total cost of ownership in harsh environments. Application: OEM machinery and conveyor systems requiring reliable, streamlined connectivity. Feature → -40 to 105 °C operating range supports high-temperature and cold-start scenarios, ensuring consistent performance in extreme seasons. Application: automotive, agricultural, and outdoor industrial equipment. Feature → UL94 V0, RoHS, and REACH compliance guarantee flame safety and regulatory alignment, reducing risk during audits and installations. Application: all control panels and enclosure assemblies subject to fire safety and environmental standards.
