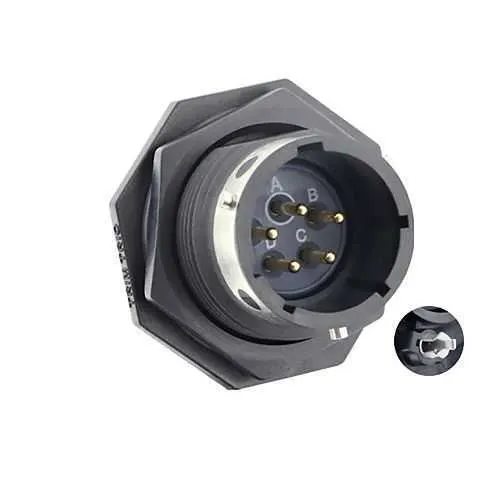

Eaton UTGX714D5PX32 Receptacle - IP68/69K rugged
Part Number: UTGX714D5PX32
Quick Summary
The Eaton UTGX714D5PX32 Receptacle is a ruggedized connector designed for harsh industrial environments. It addresses common pain points such as moisture intrusion, vibration, and constrained panel space by delivering a sealed, compact solution. This unit carries critical certifications for reliability—IP68/69K sealing in unmated conditions, UL94 V0 flammability, and RoHS/REACH compliance—supporting safety and environmental requirements. At 24.5 mm in depth, 30.2 mm in width and height, with five PCB contacts, it fits tight control panels without sacrificing performance. Its jam nut receptacle design, X-keying, and hold-down compatibility enable straightforward installation in existing automation architectures and rugged PCB layouts, reducing commissioning time and lifecycle costs.
Product Information
Extended Description
UTGX714D5PX32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 5 male PCB contacts, IP68/69K in unmated conditions, keying X; UTGX714D5PX32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D5PX32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Connector accessory option
No backshell possibility
Connector orientation
X
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D5
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
IP68/69K sealing in unmated conditions provides superior protection against moisture and dust ingress, delivering higher uptime in outdoor and dirty environments. Business impact: fewer field failures and maintenance events, lower total cost of ownership, and greater equipment availability. Application: rugged automation panels, mining equipment, and outdoor machinery where environmental exposure is routine. The five PCB contacts enable compact, straightforward control wiring, supporting reliable PLC and sensor interfaces in space-constrained panels; this improves installation speed and reduces board real estate. Bayonet coupling offers quick mating and secure retention, which translates to faster field servicing and robust performance in high-vibration applications. The jam nut receptacle design simplifies panel mounting and sealing without a backshell, reducing accessory costs and simplifying installation in tight enclosures. Operating from -40 °C to 105 °C, the connector maintains electrical integrity across extreme conditions, supporting aerospace-grade or heavy-industrial deployments where temperature swings occur. With RoHS and REACH compliance plus UL94 V0 fire safety, this connector minimizes regulatory risk and supports sustainable product stewardship in harsh environments. Salt spray endurance of 500 hours further demonstrates corrosion resistance for coastal or industrial atmospheres. These features collectively deliver measurable improvements in reliability, installation efficiency, and lifecycle cost, especially for mature automation lines, machine builders, and system integrators seeking durable, compliant interconnects.
