Eaton UTGX714D5PY32 Receptacle - IP68/69K Rugged
Part Number: UTGX714D5PY32
Quick Summary
Eaton UTGX714D5PY32 is a ruggedized PCB receptacle connector designed for harsh environments in industrial automation. Engineers often struggle with reliable mating, secure mounting, and ingress protection in compact layouts. The UTGX series delivers IP68/69K sealing in unmated conditions, UL94 V0 flammability, and RoHS/REACH compliance, enabling safe operation across -40 °C to 105 °C. With 5 PCB contacts, 1/3 bayonet coupling, and a 24.5 mm depth, it supports reliable installations and long service life, reducing maintenance downtime and total cost of ownership. This combination of robustness and install efficiency makes it a compelling choice for rugged machinery, outdoor automation enclosures, and vehicle or offshore applications where space is tight and reliability is critical.
Product Information
Extended Description

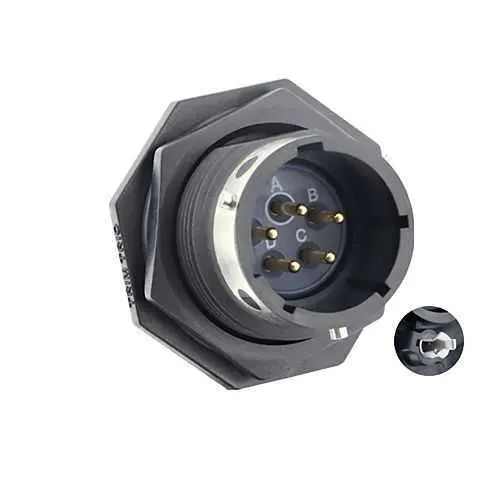

UTGX714D5PY32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 5 male PCB contacts, IP68/69K in unmated conditions, keying Y; UTGX714D5PY32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D5PY32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Connector accessory option
No backshell possibility
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D5
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature: Rugged jam nut receptacle with hold-down clips for secure mounting. Business Impact: Simplifies installation and reduces vibration-related wear, lowering field service time. Application: Ideal for compact control panels in harsh environments. Feature: IP68/69K protection in unmated conditions. Business Impact: Prevents ingress during assembly, transport, and unmated states, boosting reliability. Application: Outdoor automation and machine enclosures with frequent connector handling. Feature: 5-pin PCB contact set with layout D5 and shell size 14. Business Impact: Streamlined board design and predictable footprint, saving board real estate and BOM complexity. Application: 5-channel control interfaces in heavy machinery. Feature: 1/3 Bayonet coupling and jam nut receptacle type. Business Impact: Quick, secure mating with vibration resistance, reducing cycle times in field maintenance. Application: Harsh-production line environments where connectors are mated repeatedly. Feature: Operating temperature range -40 °C to 105 °C and 500 mating cycles. Business Impact: High-temperature tolerance and long lifecycle reduce replacement frequency and downtime. Application: Industrial automation, robotics, and mobile equipment. Feature: No backshell option; RoHS and REACH compliance. Business Impact: Compact design without backshell lowers cost and simplifies compliance reporting. Application: System integrators needing compact assemblies with full regulatory alignment.
Get a Quick Quote for a Eaton UTGX714D5PY32
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714D5PY32?
Enquire Now
FAQs
UTGX714D5PY32 is a 5-pin PCB receptacle with Layout D5 and Shell size 14, designed as a jam nut receptacle. It includes 24.5 mm depth, 30.2 mm width/height, and a no backshell option. Mating is loaded with PCB contacts, and the assembly is oriented for vertical or specific panel layouts. Plan for strain relief and secure mounting to maintain IP protection in harsh environments.
The connector operates from -40 °C to 105 °C and provides IP68/69K sealing in unmated conditions. It is rated for RoHS and REACH compliance and carries UL94 V0 flammability. Salt spray resistance is listed at 500 hours, contributing to durability in corrosive or harsh environments.
Yes. Its IP68/69K sealing, 5-pin PCB configuration, and robust jam nut receptacle design make it well-suited for outdoor automation, heavy machinery, and motor-driven equipment. The -40 to 105 °C range supports heat, cold, and vibration scenarios, while the 500 mating cycles support frequent field maintenance without premature wear.
Key certifications include UL94 V0 flame rating and RoHS/REACH compliance. The IP68/69K rating provides proven ingress protection in unmated and connected states, meeting stringent industrial and environmental requirements for harsh-environment installations.
With up to 500 mating cycles and a rugged jam nut receptacle design, the UTGX714D5PY32 minimizes downtime and replacement costs in high-use applications. Its compact, backshell-free form factor reduces weight and assembly costs, while maintaining essential sealing and mechanical stability in demanding environments.
