Eaton UTGX714D5S Receptacle - IP68/69K rugged
Part Number: UTGX714D5S
Quick Summary
UTGX714D5S is a ruggedized receptacle connector designed for harsh environments in industrial equipment. Engineers often struggle with moisture ingress, vibration, and limited space, which can cause intermittent failures and costly downtime. The UTGX family delivers IP68/69K sealing, RoHS and REACH compliance, plus UL94 V0 fire rating to meet demanding industrial and safety standards. Designed for PCB integration with five female contacts and a jam-nut receptacle, it minimizes wiring steps while enabling robust performance in automation, robotics, and field equipment. Its compact 24.5 mm depth and 30.2 mm width/height footprint fit tight panels while keeping assembly straightforward for automation and mobile equipment. Coupled with five cavities and a 1/3 bayonet coupling, UTGX714D5S supports robust mating in vibration-heavy environments and simplifies field maintenance.
Product Information
Extended Description

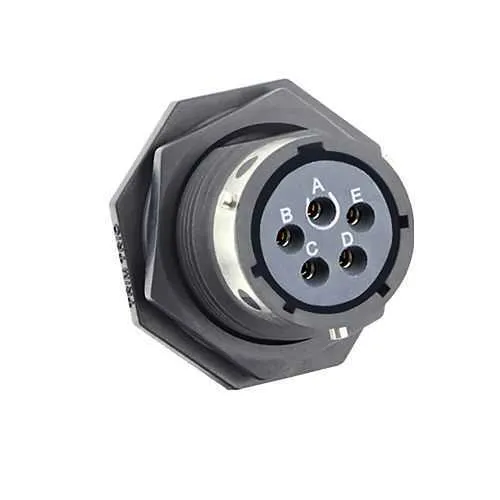

UTGX714D5S Eaton: Jam nut receptacle, without backshell, with 5 female PCB contacts, IP68/69K in unmated conditions; UTGX714D5S
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D5S
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
19 g
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D5
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
IP68/69K sealing in unmated conditions protects against water, dust, and wash-down exposure, reducing ingress-related failures and minimizing maintenance cycles. This delivers higher equipment uptime and reliability for outdoor automation, conveyors, and rugged control panels. Five loaded female PCB contacts simplify installation and ensure consistent electrical pathways from the start, cutting wiring errors and speeding panel builds. The ready-to-mate arrangement supports compact PCB layouts and enables streamlined field upgrades for sensors and controllers in harsh environments. A 1/3 Bayonet coupling provides fast, secure mating with strong vibration resistance, reducing downtime during servicing and maintenance in robotics and mobile equipment. With up to 500 mating cycles, the connector offers durable lifecycle performance that lowers replacement costs and supports predictable maintenance planning. The wide operating temperature range of -40 °C to 105 °C enables dependable operation across factory floors and extreme environments, reducing the need for climate-control solutions. Note that this jam-nut receptacle is supplied without a backshell option, which can simplify installation in tight spaces but may require alternative mounting strategies; salt spray resistance (500 hours) adds corrosion resistance for outdoor and marine-adjacent applications. The combination of metal & plastic shell, compact footprint, and 14 shell size makes UTGX714D5S a versatile choice for panel-mounted, signal and power routing in automation.
