Eaton UTGX714D5S32 Rugged Receptacle - IP68/69K
Part Number: UTGX714D5S32
Quick Summary
Eaton UTGX714D5S32 rugged receptacle connectors deliver reliable PCB connections for harsh industrial environments. Vibration, dust, and moisture routinely disrupt mating, causing intermittent signals and unplanned downtime in automation panels. This UTGX device delivers IP68/69K performance in unmated conditions and carries UL94 V0 flammability rating, RoHS and REACH compliance. Designed for quick, dependable installs within Souriau UTGX series ecosystems, it helps reduce maintenance costs while enabling dense, reliable PCB mounting options in demanding machinery and proceses.
Product Information
Extended Description

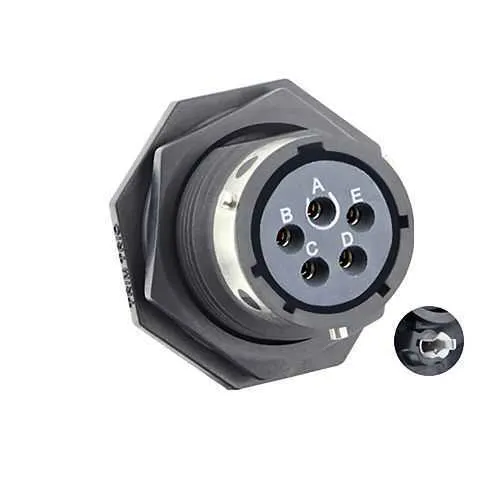

UTGX714D5S32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 5 female PCB contacts, IP68/69K in unmated conditions; UTGX714D5S32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D5S32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
19 g
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D5
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature: Ruggedized shell with metal and plastic construction enables robust protection in vibration-prone environments. Business Impact: Extends service intervals and lowers field failure rates, improving overall equipment reliability. Application: Automation panels and outdoor machinery where ingress protection is critical. Feature: Jam nut receptacle with hold-down clips and no backshell option simplifies panel mounting and space utilization. Business Impact: Reduces assembly time and part counts, cutting installation labor costs. Application: Compact control enclosures and tight-layout machines. Feature: 1/3 bayonet coupling with 5 loaded PCB contacts delivers a secure, vibration-resistant connection. Business Impact: Maintains signal integrity across cycles and reduces rework from loose connections. Application: High-vibration conveyors, robotics, and motion control systems. Feature: Operating range -40 °C to 105 °C, salt spray 500 hours, UL94 V0, RoHS and REACH compliance. Business Impact: Ensures durability in extreme environments and regulatory compliance, mitigating product recall risk. Application: Outdoor equipment, industrial automation, and heavy-duty machinery. Feature: Compact 14-shell size, 24.5 mm depth, 30.2 mm height and 30.2 mm width at a weight of 19 g. Business Impact: Enables dense panel layouts and lightweight installations, improving design flexibility and reducing weight-related stresses. Application: Aerospace-adjacent facilities and space-constrained control cabinets.
