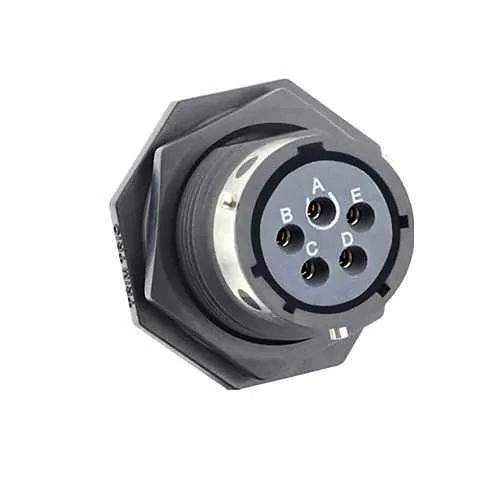

Eaton UTGX714D5SW Receptacle - IP68/69K ruggedized
Part Number: UTGX714D5SW
Quick Summary
Eaton UTGX714D5SW Receptacle delivers rugged PCB connectivity for harsh environments in industrial automation. Engineers face ingress, corrosion, and downtime in demanding installations, and this connector is designed to mitigate those challenges. With IP68/69K sealing in unmated conditions, a UL94 V0 flammability rating, and RoHS/REACH compliance, it meets high safety and reliability standards. Its compact footprint—24.5 mm long, 30.2 mm wide and tall—with five loaded PCB contacts supports reliable connections in tight panels and helps lower lifecycle costs. Designed for up to 500 mating cycles and straightforward field assembly, it expands flexibility for rugged machinery and outdoor equipment.
Product Information
Extended Description
UTGX714D5SW Eaton: Jam nut receptacle, without backshell, with 5 female PCB contacts, IP68/69K in unmated conditions, keying W; UTGX714D5SW
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D5SW
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
19 g
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector orientation
W
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D5
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature: IP68/69K sealing in unmated conditions. Business Impact: Minimizes ingress of dust, water, and contaminants, reducing maintenance, downtime, and repair costs. Application: Washdown environments in food processing, outdoor equipment, and outdoor rail systems. Feature: Five loaded PCB contacts with socket (female) configuration. Business Impact: Ready-to-wire performance speeds installation and simplifies field servicing, lowering assembly time and risk of miswiring. Application: Panel-mount control cabinets and compact PLC interfaces. Feature: 1/3 Bayonet coupling and jam nut receptacle design. Business Impact: Fast mating and secure retention in limited spaces, decreasing installation time and vibration-related disconnects. Application: Vehicles, construction machinery, and industrial automation panels. Feature: Operating temperature range -40 °C to 105 °C. Business Impact: Enables reliable operation across extreme climates, reducing thermal-related failures. Application: Outdoor machinery, mining equipment, and severe industrial environments. Feature: Mating cycles rated at 500. Business Impact: Longer service life translates to lower replacement costs and predictable maintenance planning. Application: High-cycle connections in demanding applications. Feature: Compliance attributes UL94 V0, REACH, and RoHS. Business Impact: Ensures regulatory compliance and safety certifications, simplifying procurement and quality assurance. Application: Global manufacturing environments with strict environmental standards.
Get a Quick Quote for a Eaton UTGX714D5SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714D5SW?
Enquire Now
FAQs
The UTGX714D5SW uses a 1/3 Bayonet coupling and is a five-contact PCB receptacle with a jam-nut mounting style. It is designed as a loaded receptacle (socket/female) in shell size 14 with W orientation, compatible with UTGX series fixtures and standard PCB layouts. Note that this model has no backshell option, so plan enclosure protection and cable routing accordingly.
This receptacle operates from -40 °C to 105 °C and achieves IP68/69K sealing in unmated conditions, providing robust ingress protection in washdown and outdoor environments. It also carries RoHS and REACH compliance plus UL94 V0 flammability rating for safety.
Yes. The 1/3 Bayonet coupling, rugged metal-plastic shell, and IP68/69K sealing support resistance to water, dust, and vibration. With 500 mating cycles and a compact footprint, it is well-suited for rugged machinery, outdoor equipment, and production lines subject to demanding conditions.
UTGX714D5SW carries RoHS and REACH compliance and a UL94 V0 flammability rating, aligning with global environmental and safety requirements. This simplifies sourcing for regulated industries and reduces compliance risk across multinational projects.
The combination of IP68/69K protection, five ready-to-use PCB contacts, and a long 500-cycle life reduces maintenance interval costs, minimizes downtime, and lowers total cost of ownership for harsh-environment installations. Its compact form factor also saves panel space and speeds installation, contributing to faster project timelines.
