Eaton UTGX714D5SW32 Receptacle - IP68/69K ruggedized
Part Number: UTGX714D5SW32
Quick Summary
Eaton UTGX714D5SW32 provides rugged receptacle connectivity for harsh environments in industrial automation. Engineers often struggle with moisture ingress, vibration, and downtime when connectors fail in outdoor or mobile systems. This design delivers IP68/69K sealing, RoHS and REACH compliance, and UL94 V0 flame rating to meet strict safety and regulatory requirements. The jam nut receptacle with hold-down clips and 5 PCB contacts simplifies panel mounting and board integration, reducing wiring errors. With 1/3 bayonet coupling and up to 500 mating cycles, it supports reliable, field-friendly maintenance in robotics, mobile machinery, and control cabinets. The solution complements ruggedized sensor networks and power interfaces to boost uptime and total cost of ownership.
Product Information
Extended Description

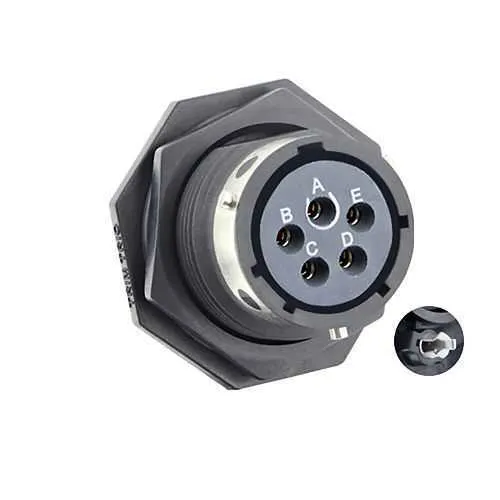

UTGX714D5SW32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 5 female PCB contacts, IP68/69K in unmated conditions, keying W; UTGX714D5SW32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D5SW32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
19 g
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector orientation
W
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D5
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
