Eaton UTGX714D5SX Receptacle - IP68/69K Rugged
Part Number: UTGX714D5SX
Quick Summary
Eaton UTGX714D5SX Receptacle is a ruggedized PCB connector designed for harsh environments in industrial equipment. This interface addresses the common challenge of maintaining reliable connectivity where dust, water, and vibration are present. By delivering a sealed, vibration-tolerant connection with simple assembly, it helps minimize downtime and rework on critical lines. The design aligns with IP68/69K unmated protection, RoHS and REACH compliance, and UL94 V0 flammability standards to support safe, long-life operation in demanding settings. In addition to robust environmental performance, the UTGX714D5SX offers compact dimensions and a clear mating orientation, delivering value across automation, packaging, and mobility equipment projects. This combination supports OEMs seeking durable, compliant PCB connectivity with predictable lifecycle costs.
Product Information
Extended Description

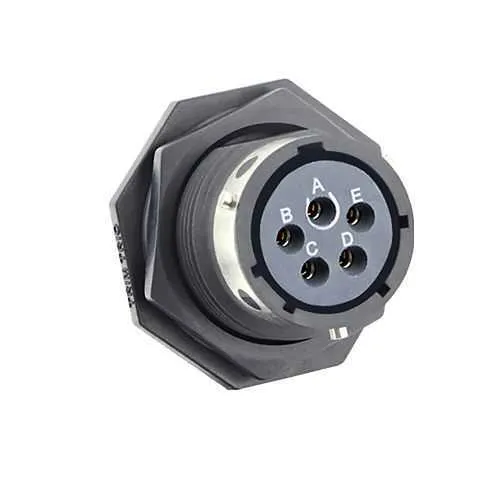

UTGX714D5SX Eaton: Jam nut receptacle, without backshell, with 5 female PCB contacts, IP68/69K in unmated conditions, keying X; UTGX714D5SX
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D5SX
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
19 g
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector orientation
X
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D5
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature → Business Impact → Application: The UTGX714D5SX uses a jam nut receptacle with 5 female PCB contacts, delivering a compact, strong mounting option that reduces installation time and controller enclosure space in harsh environments; this translates to lower panel footprint and faster serviceability in mining or outdoor machinery. Feature → Business Impact → Application: IP68/69K sealing in unmated conditions ensures contamination protection during field maintenance, lowering failure rates in dusty or wet environments like outdoor conveyors and wind turbine sites; ideal for solar farms, wastewater treatment, and heavy equipment. Feature → Business Impact → Application: 1/3 Bayonet coupling provides rapid, vibration-tolerant mating with reliable retention, minimizing rework in vibration-prone applications such as forklifts, robots, and automated assembly lines. Feature → Business Impact → Application: 5 contacts and PCB-compatible layout streamline wiring harnesses and board-to-board transitions, reducing harness complexity and enabling faster product iterations in robotic grippers and control panels. Feature → Business Impact → Application: Operating range −40 °C to 105 °C and 500 mating cycles enhance lifecycle predictability, supporting preventative maintenance programs and reducing total cost of ownership for harsh-environment automation.
Get a Quick Quote for a Eaton UTGX714D5SX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714D5SX?
Enquire Now
FAQs
The UTGX714D5SX is a jam nut receptacle designed for mounting directly to panels with no backshell option. It uses a 1/3 Bayonet coupling and X orientation to ensure secure, quick mating in space-constrained enclosures, making it suitable for compact automation cabinets and rugged handhelds.
This receptacle provides 5 PCB contacts in a D5 layout, with a product footprint of 24.5 mm depth and 30.2 mm height/width. It supports operating temperatures from −40 °C to 105 °C and is rated IP68/69K unmated, RoHS and REACH compliant, with UL94 V0 flammability and 500 mating cycles.
Yes. Its 1/3 Bayonet coupling and rugged metal/plastic shell, combined with IP68/69K sealing, provide reliable retention and environmental protection in demanding settings such as conveyors, robotics, and heavy machinery, reducing connector-related failures under vibration.
UTGX714D5SX offers no backshell option, which simplifies installation and reduces weight. This makes it well-suited for compact, rugged installations where external protection shells are not required or are provided by the equipment housing.
The connector supports up to 500 mating cycles, supporting long-term use in maintenance-heavy environments. With IP68/69K sealing and RoHS/REACH compliance, routine inspections and periodic cleaning are recommended to preserve seal integrity and ensure ongoing reliability in outdoor or wet environments.
