Eaton UTGX714D5SX32 Receptacle - IP68/69K ruggedized
Part Number: UTGX714D5SX32
Quick Summary
The Eaton UTGX714D5SX32 ruggedized receptacle provides reliable PCB connections for harsh industrial environments. This design targets vibration-heavy equipment and dust-prone locations where loose or failed connectors can halt production. The part carries IP68/69K protection in unmated conditions and meets UL94 V0 flammability and RoHS/REACH compliance, ensuring safety and regulatory alignment. With its jam nut receptacle and X-keying, installation is straightforward in tight enclosures, while 5 PCB contacts support compact, cost-efficient layouts. Operators benefit from high mating cycles and predictable performance, reducing downtime and maintenance costs. For system integrators, the UTGX714D5SX32 offers a robust foundation for reliable automation interfaces.
Product Information
Extended Description

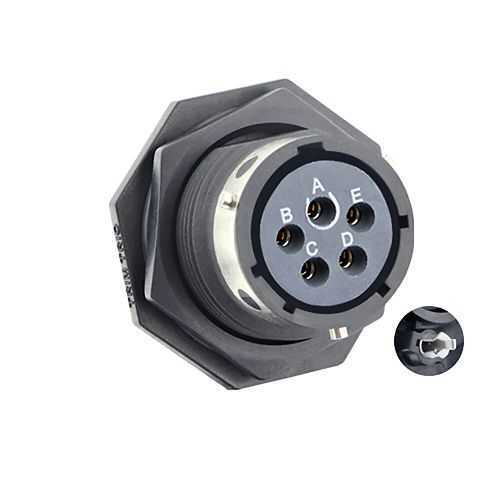

UTGX714D5SX32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 5 female PCB contacts, IP68/69K in unmated conditions, keying X; UTGX714D5SX32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D5SX32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
19 g
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Connector accessory option
No backshell possibility
Connector orientation
X
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D5
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature → Business Impact → Application: Jam nut receptacle with hold-down clips enables secure mounting in vibration-prone enclosures, reducing micro-movements that cause intermittent contacts and sparking. This translates to lower maintenance overhead and less unplanned downtime in heavy machinery and mobile equipment. Application: use in harsh environments where reliability is critical, such as mining haulers or construction rigs. Feature → Business Impact → Application: Five PCB contacts deliver a compact, cost-effective interface that simplifies board layout and minimizes assembly footprint, supporting smaller control panels and streamlined bill of materials. Application: ideal for compact automation cabinets and space-constrained machinery. Feature → Business Impact → Application: 1/3 bayonet coupling provides quick mating and unmating without tools, speeding field servicing and minimizing machine downtime during repairs. Application: industrial conveyors and packaging lines where uptime matters. Feature → Business Impact → Application: IP68/69K protection in unmated conditions delivers exceptional sealing against water, dust, and high-pressure washdowns, ensuring reliability in wash-down zones and offshore environments. Application: outdoor control housings and wet, dusty manufacturing floors. Feature → Business Impact → Application: Wide operating temperature range from -40 °C to 105 °C, plus 500 mating cycles, ensures long service life in extreme climates and demanding duty cycles. Application: outdoor equipment and cold/warm-start installations. Feature → Business Impact → Application: No backshell possibility reduces hardware cost and simplifies installation in tight spaces, while the metal/plastic shell provides robust EMI shielding and ruggedness. Application: compact panels with tight routing and limited mounting space.
Get a Quick Quote for a Eaton UTGX714D5SX32
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714D5SX32?
Enquire Now
FAQs
UTGX714D5SX32 uses a jam nut receptacle with hold-down clips and X-keying for secure mounting in vibration-prone enclosures. There is no backshell option, so plan enclosure shielding accordingly. The IP68/69K rating in unmated conditions means seals must be properly engaged during mating to maintain protection levels in dusty or wash-down settings.
Designed for demanding duty, it offers 5 PCB contacts with a 1/3 bayonet coupling, enabling quick, secure mating. It supports up to 500 mating cycles, maintaining signal integrity in high-vibration environments typical of mining and construction equipment.
Yes. The receptacle supports a -40 to 105 C temperature range and IP68/69K sealing, with RoHS and REACH compliance. Its robust metal/plastic shell and 5-contact layout are well-suited for compact control panels in harsh marine or mining installations.
The UTGX714D5SX32 carries UL94 V0 flammability ratings and RoHS/REACH compliance, ensuring safety and regulatory alignment for industrial equipment. Its IP68/69K rating provides industry-leading ingress protection in unmated conditions, even in wash-down or dusty environments.
The 500 mating cycles, quick 1/3 bayonet mating, and rugged IP-rated sealing reduce downtime and replacement frequency. Its compact 5-pin PCB interface lowers assembly costs and panel space, contributing to faster deployments and a lower total cost of ownership in automated systems.
