Eaton UTGX714D5SY Receptacle - IP68/69K Ruggedized
Part Number: UTGX714D5SY
Quick Summary
UTGX714D5SY ruggedized connector serves as a PCB socket receptacle for harsh industrial environments. Engineers struggle with sealing integrity and vibration in tight-panel installations. Featuring IP68/69K sealing in unmated conditions, UL94 V0 flammability, and RoHS/REACH compliance, it supports demanding industries. This interface streamlines ruggedized PCB assemblies, improving maintenance cycles and reducing total cost of ownership in automation and machinery. Its 5-contact PCB layout and 1/3 bayonet coupling simplify field assembly and future upgrades. With a compact 24.5 mm length and 30.2 mm width, it fits compact panel designs. Mating cycles of 500 ensure long service life in intermittent duty. Loaded contact delivery reduces assembly time and minimizes wiring errors.
Product Information
Extended Description

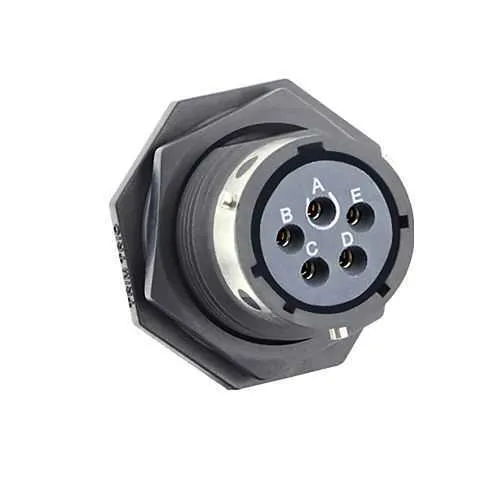

UTGX714D5SY Eaton: Jam nut receptacle, without backshell, with 5 female PCB contacts, IP68/69K in unmated conditions, keying Y; UTGX714D5SY
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D5SY
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
19 g
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Connector accessory option
No backshell possibility
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D5
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
IP68/69K sealing in unmated conditions protects sensitive electronics from water, dust and pressure, reducing field failures and warranty costs while enabling outdoor and wash-down applications in harsh environments. Business impact: fewer service interruptions and lower total cost of ownership in industrial automation and heavy machinery. Application: control panels in manufacturing floors and outdoor equipment where exposure to fluids or dust is routine. UTGX714D5SY’s 5 PCB contacts and loaded delivery streamline wiring, cutting installation time and improving traceability. Business impact: faster deployment and lower labor costs during panel builds. Application: new installations and retrofit projects across process and packaging lines. 1/3 bayonet coupling provides quick, secure mating, minimizing downtime during maintenance windows. Business impact: improved uptime and reduced maintenance planning. Application: field service in remote or hazardous locations.
Get a Quick Quote for a Eaton UTGX714D5SY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714D5SY?
Enquire Now
FAQs
UTGX714D5SY is a jam nut receptacle with no backshell option, designed for panel mounting without additional backshell accessories. This simplifies installation in compact spaces and reduces accessory inventory. For field reliability, ensure correct orientation (Y) and secure mounting to minimize vibration exposure during operation.
The UTGX714D5SY operates from -40 °C to 105 °C and supports up to 500 mating cycles. This combination provides resilience in extreme environments and long service life in intermittent duty applications, reducing replacement frequency and downtime.
Yes. The connector features IP68/69K sealing in unmated conditions, RoHS and REACH compliance, and UL94 V0 flame rating, making it suitable for wash-down environments, outdoor installations, and rugged automation panels found in manufacturing and processing facilities.
UTGX714D5SY carries IP68/69K sealing, UL94 V0 flammability rating, and RoHS/REACH compliance. These certifications ensure weather resistance, fire safety, and regulatory compliance critical for industrial and automotive-grade applications.
The 5-contact PCB design with loaded delivery and quick 1/3 bayonet mating reduces wiring errors and installation time, while robust sealing extends service life in harsh environments. Together, these factors lower maintenance frequency, shorten downtime, and improve overall project ROI for manufacturing and packaging lines.
