Eaton UTGX714D5SY32 Receptacle - IP68/69K ruggedized
Part Number: UTGX714D5SY32
Quick Summary
The Eaton UTGX714D5SY32 Receptacle provides rugged, reliable connectivity for harsh industrial environments. Engineers often struggle with ingress protection and vibration-induced disconnections, leading to downtime and costly maintenance. With IP68/69K protection, RoHS and REACH compliance, and UL94 V0 material ratings, this solution supports long-life deployments in demanding settings. Designed for PCB socket contacts with jam-nut mounting, it combines compact form with robust mating performance. This enables easier field install, reduced panel height, and improved serviceability for automated machinery and robotic systems.
Product Information
Extended Description

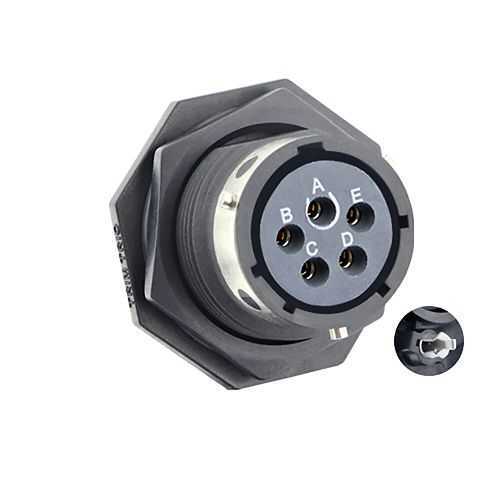

UTGX714D5SY32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 5 female PCB contacts, IP68/69K in unmated conditions, keying Y; UTGX714D5SY32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D5SY32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
19 g
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Connector accessory option
No backshell possibility
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D5
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
