Eaton UTGX714D5SZ32 Receptacle - IP68/IP69K rugged
Part Number: UTGX714D5SZ32
Quick Summary
Eaton Souriau UTGX714D5SZ32 ruggedized connector provides robust PCB-to-board connections for harsh industrial environments. Operators often struggle with ingress, vibration, and downtime in outdoor or automated facilities, making reliable, sealed connectivity essential. With IP68/69K sealing, UL94 V0 flammability, and RoHS/REACH compliance, this receptacle meets harsh-duty standards while supporting regulatory safety expectations. Designed for UTGX series compatibility and a jam-nut receptacle implementation, it simplifies installation and reduces lifecycle costs across automation, packaging, and process industries. This combination of rugged performance and ease of integration translates into lower maintenance, fewer field failures, and better overall equipment uptime.
Product Information
Extended Description

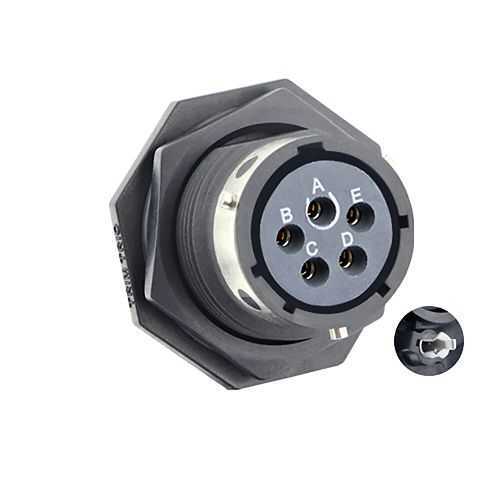

UTGX714D5SZ32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 5 female PCB contacts, IP68/69K in unmated conditions, keying Z; UTGX714D5SZ32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D5SZ32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
19 g
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Connector accessory option
No backshell possibility
Connector orientation
Z
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D5
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K sealing in unmated conditions delivers superior ingress protection, reducing field failures and downtime in dusty, wet, or washdown environments; application includes conveyors, outdoor equipment, and automated lines, improving uptime and service intervals. Feature → Business Impact → Application: Jam nut receptacle with no backshell requirement enables compact assemblies, lower weight, and simpler panel integration, ideal for tight enclosures in material handling and packaging equipment. Feature → Business Impact → Application: Five PCB contacts provide reliable signal and power distribution with a small footprint; suitable for compact control boards in machine builders and robotic systems. Feature → Business Impact → Application: 1/3 Bayonet coupling allows quick mating and unmating, improving field maintenance turnaround and reducing commissioning time in harsh environments. Feature → Business Impact → Application: Operating range −40 to 105 °C and 500 mating cycles deliver robust performance under temperature cycling and vibration common in process automation. Feature → Business Impact → Application: Salt spray rating of 500 hours and durable metal/plastic shell support long service life in marine or agricultural settings, reducing spare part costs. Feature → Business Impact → Application: Jam Nut Receptacle type and 14 shell size with UTGX compatibility simplify integration in existing UTGX-based systems, providing predictable fit and performance for OEMs and integrators.
