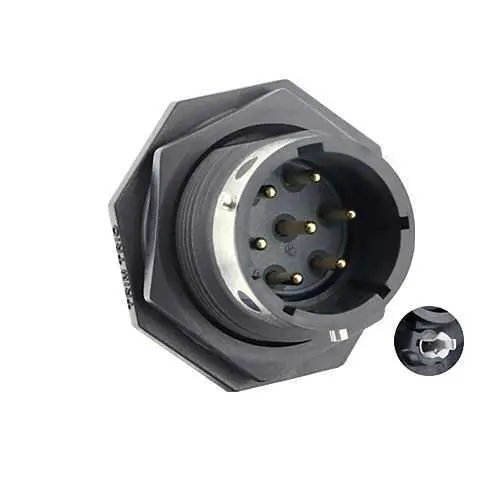

Eaton UTGX714D7P32 Receptacle - IP68/69K unmated
Part Number: UTGX714D7P32
Quick Summary
The Eaton UTGX714D7P32 receptacle is a ruggedized PCB connector for harsh industrial environments. Engineers seek reliable, vibration-resistant interconnections that withstand challenging machines, conveyors, and robotics. It delivers IP68/69K sealing in unmated states, supports a wide operating range from -40 to 105°C, and tolerates up to 500 mating cycles. Built around a jam nut receptacle with ground cavity layout, it minimizes EMI and ensures secure mounting. This makes it a practical choice for integration on heavy equipment, automation controllers, and remote sensing modules, while RoHS and UL94 V0 compliance help simplify regulatory approvals and field maintenance.
Product Information
Extended Description
UTGX714D7P32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 7 male PCB contacts, IP68/69K in unmated conditions; UTGX714D7P32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D7P32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
19 g
Fitted with:
Layout with ground cavity
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Pin (Male)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D7
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
7
Number of cavity #16
7
Salt spray
500 hour
Feature: Seven PCB contacts in a D7 layout provide a compact, robust signal path. Business Impact: Reduces PCB routing complexity and improves signal integrity in dense control boards. Application: Ideal for automation controllers and sensor interfaces in rugged machinery. Feature: Jam nut receptacle with ground cavity ensures a secure, EMI-friendly ground connection. Business Impact: Enhances electrical shielding and mating stability under vibration. Application: Motor drives and power-sensing modules in heavy equipment. Feature: 1/3 Bayonet coupling enables fast, reliable mating and ease of field servicing. Business Impact: Cuts downtime during maintenance and reduces labor costs. Application: Production-line equipment and portable instrumentation. Feature: IP68/69K sealing in unmated conditions protects against dust and water ingress. Business Impact: Dramatically lowers field failure rates in wash-down and outdoor installations. Application: Outdoor machinery, marine applications, and food-grade environments. Feature: Wide operating temperature -40 to 105°C and 500 mating cycles demonstrate durability. Business Impact: Supports extended service life and predictable performance across diverse climates. Application: Off-road vehicles, industrial presses, and harsh-environment controls. Feature: Metal & Plastic shell with RoHS and UL94 V0 compliance ensures robust construction and regulatory compatibility. Business Impact: Streamlines procurement and compliance documentation. Application: System integration in regulated industrial environments with strict material requirements.
Get a Quick Quote for a Eaton UTGX714D7P32
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714D7P32?
Enquire Now
FAQs
Mounting the UTGX714D7P32 requires using the jam nut receptacle with ground cavity to ensure a secure, EMI-friendly ground. The option label indicates no backshell is available, so plan for an internal or external strain relief if cables are routed in high-vibration or wash-down environments. Follow the device manufacturer’s torque recommendations to maintain sealing integrity.
Yes. The connector supports -40 to 105°C operation and offers 500 mating cycles, making it suitable for equipment exposed to wide thermal ranges and continuous vibration. The IP68/69K sealing in unmated conditions further protects against ingress, reducing failure rates in conveyors, presses, and mobile machinery.
UTGX714D7P32 uses seven PCB contacts in a D7 layout, simplifying routing and alignment on control boards. The ground cavity layout improves EMI performance, while the jam nut receptacle provides a stable, secure mounting method that is friendly to standard PCB footprints used in automation controllers and sensor interfaces.
The connector adheres to RoHS and UL94 V0 flammability standards and is designed for IP68/69K protection in unmated conditions. This helps organizations meet regulatory requirements for environmental safety and equipment reliability in regulated industries while enabling source inspection and quality traceability.
With a 500 mating cycle rating and durable metal-plastic shell, the UTGX714D7P32 reduces maintenance downtime and part replacements in high-use environments. Its robust sealing and wide temperature tolerance lower field failure costs, while RoHS/UL94 V0 compliance simplifies spares management and supplier qualification, delivering predictable total cost of ownership.
